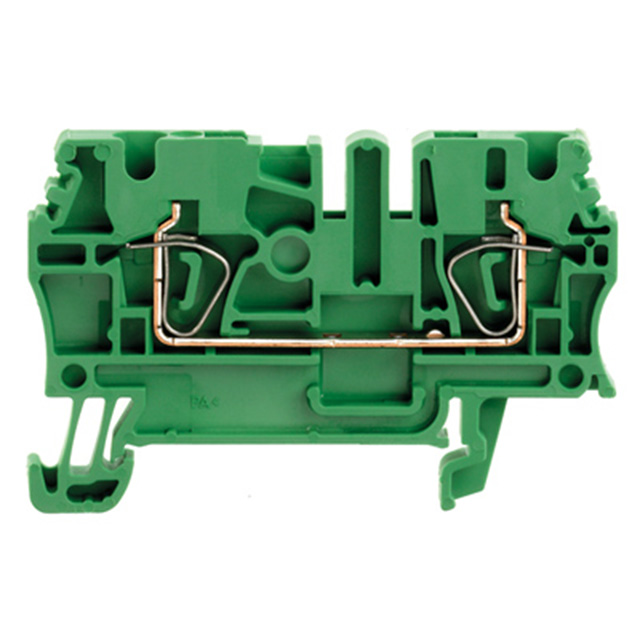

1683280000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

RoHS Status :

RoHS Compliant

Length :

59.5mm

Voltage - IEC :

800V

Fastening Method :

SPRING LOADED

Approval Agency :

CE, CSA, IEC, UR

Series :

Z

Width :

5.1mm

Voltage - Rated :

800V

Wire Gauge or Range - AWG :

12-30 AWG

Height :

38.5mm

Number of Levels :

1

Color :

Green

Current :

21A

Lead Free :

Lead Free

Published :

2009

Number of Decks :

1

Material - Insulation :

Thermoplastic, Wemid

Safety Approval :

UL; CSA; CE

Current Rating :

24A

Number of Positions :

2

Wire Gauge (Max) :

30 AWG

Additional Feature :

STANDARD: UL 94V-0

Radiation Hardening :

No

Stripping Length :

10mm

Termination Style :

Push In, Spring

Voltage :

600V

Housing Material :

Nylon

HTS Code :

8536.69.40.40

Factory Lead Time :

6 Weeks

Orientation :

Straight

ECCN Code :

EAR99

Number of Rows :

2

Type :

Feed Through

Wire Gauge (Min) :

12 AWG

Wire Gauge or Range - mm² :

0.5-4mm2

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

Not Applicable

Current - UL :

25A

Flammability Rating :

UL94 V-0
