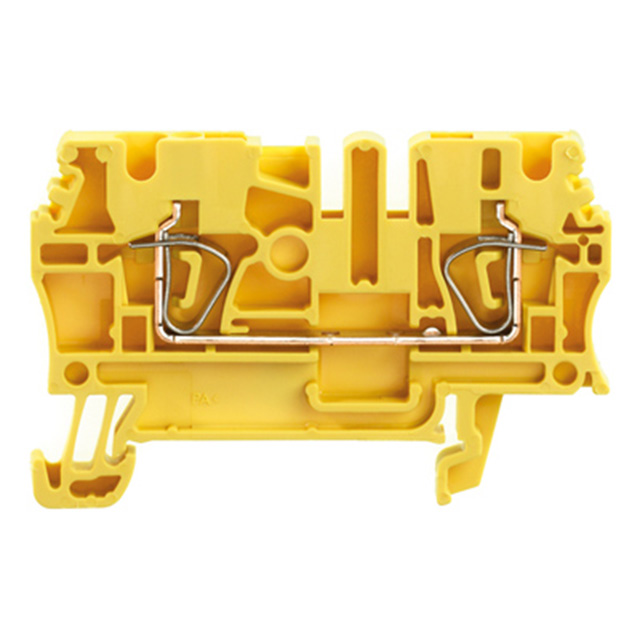

1683270000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Current - UL :

25A

RoHS Status :

RoHS Compliant

Stripping Length :

10mm

Width :

5.1mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Housing Material :

Nylon

Number of Levels :

1

Termination Style :

Push In, Spring

Current :

21A

Length :

59.5mm

Color :

Yellow

Voltage - IEC :

800V

Wire Gauge (Min) :

12 AWG

Number of Decks :

1

Wire Gauge or Range - AWG :

12-30 AWG

Published :

2008

Fastening Method :

SPRING LOADED

ECCN Code :

EAR99

Number of Positions :

2

Voltage :

600V

Factory Lead Time :

6 Weeks

Flammability Rating :

UL94 V-0

Height :

38.5mm

Radiation Hardening :

No

Wire Gauge or Range - mm² :

0.5-4mm2

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Approval Agency :

CE, CSA, IEC, UR

Additional Feature :

STANDARD: UL 94V-0

Type :

Feed Through

Lead Free :

Lead Free

Material - Insulation :

Thermoplastic, Wemid

Wire Gauge (Max) :

30 AWG

Orientation :

Straight

Current Rating :

24A

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

8kV

Safety Approval :

UL; CSA; CE

Series :

Z

Number of Rows :

2
