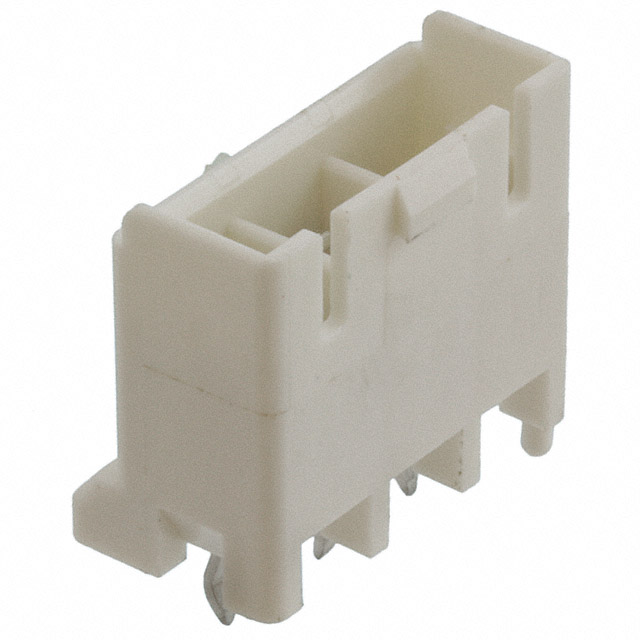

1376383-1
Or copy the link below:
- Mfr.Part #
- 1376383-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 5MM
- Stock
- 35,573
- In Stock ：
- 35,573
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Orientation :
- Vertical
- Pbfree Code :
- yes
- Insulation Resistance :
- 500000000Ohm
- Circuit Application :
- Power
- Operating Supply Voltage :
- 300V
- Contact Length - Post :
- 0.138 3.50mm
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- Body Breadth :
- 0.275 inch
- Contact Retention :
- Without
- Feature :
- Board Guide
- IEC Conformance :
- No
- Pitch - Mating :
- 0.197 5.00mm
- Mixed Contacts :
- yes
- Stack Height (Mating) :
- 19.4mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Sealable :
- No
- Contact Current Rating :
- 10A
- Factory Lead Time :
- 15 Weeks
- Voltage - Rated :
- 300VAC
- Max Voltage Rating (AC) :
- 300V
- Dielectric Withstanding Voltage :
- 2200VAC V
- Contact Shape :
- RECTANGULAR
- ECCN Code :
- EAR99
- Body Depth :
- 0.555 inch
- Width :
- 14.097mm
- Approval Agency :
- CSA
- PCB Thickness :
- 63μm
- Current Rating :
- 9A
- Style :
- Board to Cable/Wire
- Durability :
- 25 Cycles
- Housing Material :
- Nylon
- Fastening Type :
- Locking Ramp
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Published :
- 2008
- Termination :
- Kinked Pin, Solder
- DIN Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Reliability :
- COMMERCIAL
- Number of Positions :
- 3
- Plating Thickness :
- 39.36μm
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Tab
- Flammability Rating :
- UL94 V-0
- Height :
- 13.97mm
- Insertion Force-Max :
- 9.7856 N
- Contact Finish - Mating :
- Tin
- Series :
- Power Key
- Current Rating (Amps) :
- Varies by WireGAuge
- Connector Type :
- Header
- Packaging :
- Bulk
- Insulation Height :
- 0.555 14.10mm
- Housing Color :
- Natural
- Mount :
- Through Hole
- Mating Post Length :
- 6.2992mm
- Length :
- 16.5862mm
- Operating Temperature :
- -40°C~105°C
- Shrouding :
- Shrouded - 4 Wall
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Applications :
- GENERAL PURPOSE
- Datasheets
- 1376383-1
Power Key Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 3-Position Board to Cable/Wire 0.555 14.10mm Height
1376383-1 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Power Key Series.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 300V.It operates at an operating temperature of -40°C~105°C.
1376383-1 Features
Power Key series
1376383-1 Applications
There are a lot of TE Connectivity AMP Connectors
1376383-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
