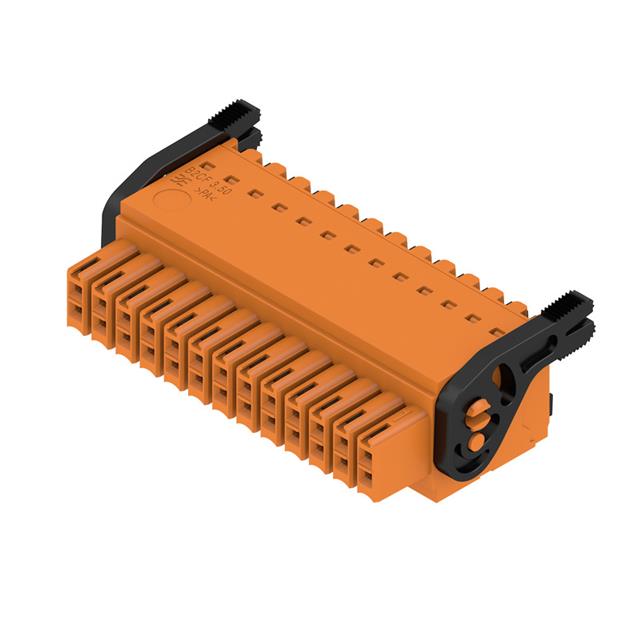

1376000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Levels :

2

Current - IEC :

13.4A

Mounting Type :

Free Hanging (In-Line)

Positions Per Level :

13

Packaging :

Bulk

Type :

Plug, Female Sockets

Feature :

Ejector Latches

Housing Material :

Polyamide (PA66), Nylon 6/6, Glass Filled

Contact Material :

COPPER ALLOY

Termination Style :

Screwless - Leg Spring, Push-In Spring

Insulation Height :

0.598 15.19mm

Voltage - UL :

300V

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Wire Strip Length :

10mm

Operating Temperature :

-50°C~120°C

Factory Lead Time :

10 Weeks

Wire Gauge or Range - mm² :

0.14-1.5mm2

Voltage - IEC :

320V

Number of Positions :

26

Series :

Omnimate B2CF

Color :

Orange

Contact Mating Finish :

Tin

Current - UL :

9.5A

Pitch :

0.138 3.50mm

Ingress Protection :

IP20

Plug Wire Entry :

180°

Wire Gauge or Range - AWG :

16-26 AWG
