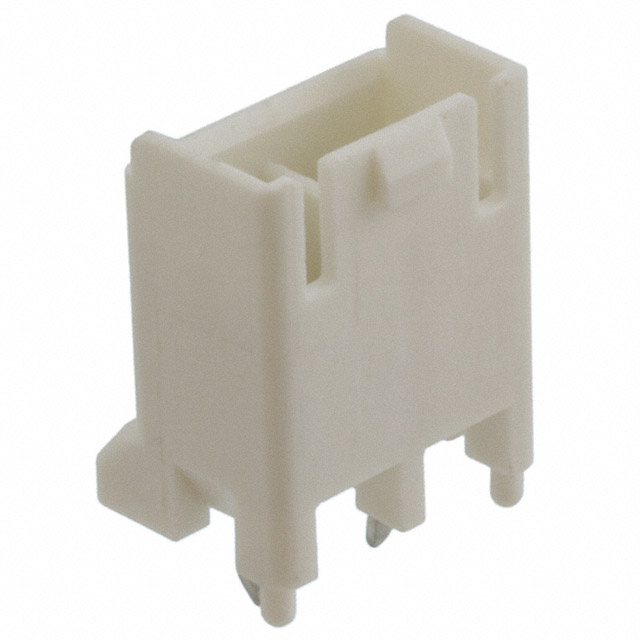

1376382-1
Or copy the link below:
- Mfr.Part #
- 1376382-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 5MM
- Stock
- 27,770
- In Stock ：
- 27,770
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insertion Force-Max :
- 9.7856 N
- Series :
- Power Key
- PCB Thickness :
- 63μm
- Max Voltage Rating (AC) :
- 300V
- Housing Material :
- Nylon
- Material Flammability Rating :
- UL94 V-0
- Sealable :
- No
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Factory Lead Time :
- 15 Weeks
- Contact Gender :
- Male
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- DIN Conformance :
- No
- Shell Material :
- GLASS FILLED POLYAMIDE66
- Contact Finish - Mating :
- Tin
- Published :
- 2008
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Number of Conductors :
- ONE
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Height :
- 0.555 14.10mm
- Insulation Resistance :
- 500000000Ohm
- Fastening Type :
- Locking Ramp
- Contact Current Rating :
- 10A
- Plating Thickness :
- 39.36μm
- Contact Shape :
- RECTANGULAR
- Connector Type :
- Header
- Contact Type :
- Tab
- Orientation :
- Vertical
- Operating Supply Voltage :
- 300V
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Approval Agency :
- CSA
- RoHS Status :
- RoHS Compliant
- Length :
- 11.6mm
- Number of Rows :
- 1
- Mating Post Length :
- 6.2992mm
- Circuit Application :
- Power
- Mount :
- Through Hole
- Termination :
- Kinked Pin, Solder
- Contact Length - Post :
- 0.138 3.50mm
- MIL Conformance :
- No
- Stack Height (Mating) :
- 19.4mm
- Voltage - Rated :
- 300VAC
- Contact Material :
- COPPER ALLOY
- IEC Conformance :
- No
- Height :
- 13.97mm
- Number of Positions :
- 2
- Current Rating :
- 10A
- Applications :
- GENERAL PURPOSE
- Packaging :
- Bulk
- Filter Feature :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Feature :
- Board Guide
- Body Depth :
- 0.555 inch
- Width :
- 14.097mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.197 5.00mm
- Shrouding :
- Shrouded - 4 Wall
- Contact Retention :
- Without
- Empty Shell :
- No
- Housing Color :
- Natural
- Operating Temperature :
- -40°C~105°C
- Flammability Rating :
- UL94 V-0
- Datasheets
- 1376382-1
Power Key Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 2-Position Board to Cable/Wire 0.555 14.10mm Height
1376382-1 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Power Key Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.A number of features make the Board Guide feature more powerful.Through Hole represents the mounting point for the part.You're going to need 300V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
1376382-1 Features
Power Key series
1376382-1 Applications
There are a lot of TE Connectivity AMP Connectors
1376382-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
