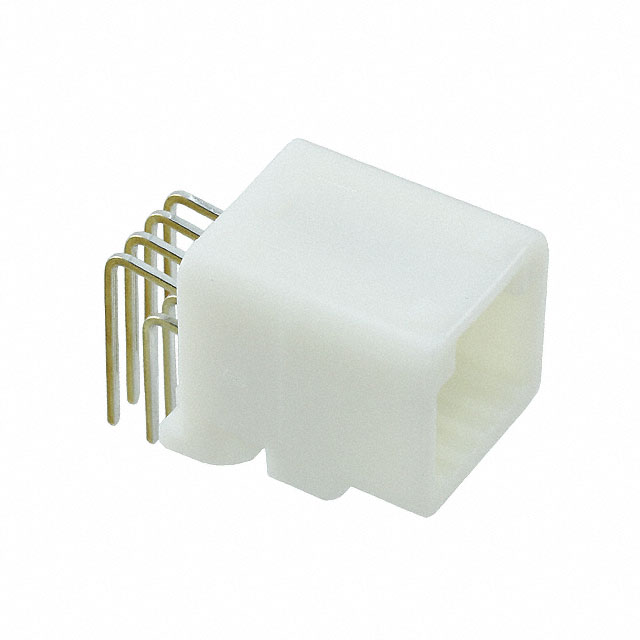

1376350-2
Or copy the link below:
- Mfr.Part #
- 1376350-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.2MM
- Stock
- 869
- In Stock ：
- 869
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Gender :
- FEMALE
- Number of Rows :
- 2
- Reference Standard :
- UL
- Fastening Type :
- Latch Holder
- Housing Material :
- Polybutylene
- Circuit Application :
- Signal
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Resistance :
- 16mOhm
- Option :
- GENERAL PURPOSE
- ELV :
- Compliant
- Mount :
- Panel, Through Hole
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 19 Weeks
- Reliability :
- COMMERCIAL
- Voltage - Rated :
- 12VDC
- Applications :
- Automotive
- Width :
- 14.1986mm
- Contact Finish - Mating :
- Tin
- Insulation Height :
- 0.610 15.49mm
- Filter Feature :
- No
- Height :
- 15.5mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- DIN Conformance :
- No
- Width - Tab :
- 635μm
- Max Voltage Rating (DC) :
- 12V
- Termination :
- Solder
- Feature :
- Mounting Flange
- Tab Thickness :
- 640μm
- Number Of PCB Rows :
- 2
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- PCB Thickness :
- 1.6mm
- MIL Conformance :
- No
- Rated Current (Signal) :
- 7A
- Contact Material :
- Brass
- Lead Free :
- Lead Free
- Shrouding :
- Shrouded - 4 Wall
- Depth :
- 24.47mm
- Contact Shape :
- Square
- Contact Length - Post :
- 0.157 4.00mm
- Empty Shell :
- No
- Orientation :
- RIGHT ANGLE
- Contact Length - Mating :
- 0.217 5.50mm
- Number of Signal Positions :
- 8
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Resistance :
- 100000000Ohm
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 HB
- Radiation Hardening :
- No
- Shielding :
- Unshielded
- Flammability Rating :
- UL94 HB
- Polarization Key :
- POLARIZED HOUSING
- Body Breadth :
- 0.61 inch
- Operating Temperature :
- -30°C~105°C
- Mixed Contacts :
- No
- Packaging :
- Tube
- Length :
- 24.4602mm
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.087 2.20mm
- Mounting Type :
- Through Hole, Right Angle
- Published :
- 2004
- Housing Color :
- Natural
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Style :
- Board to Cable/Wire
- Datasheets
- 1376350-2
2-Row Header Solder Brass Tube Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.610 15.49mm Height
1376350-2 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tube case is used to package the product.This device may be used for the purpose of Automotive.A number of features make the Mounting Flange feature more powerful.Panel, Through Hole represents the mounting point for the part.-30°C~105°C Operating Temperature is the default operating temperature for the device.
1376350-2 Features
1376350-2 Applications
There are a lot of TE Connectivity AMP Connectors
1376350-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
