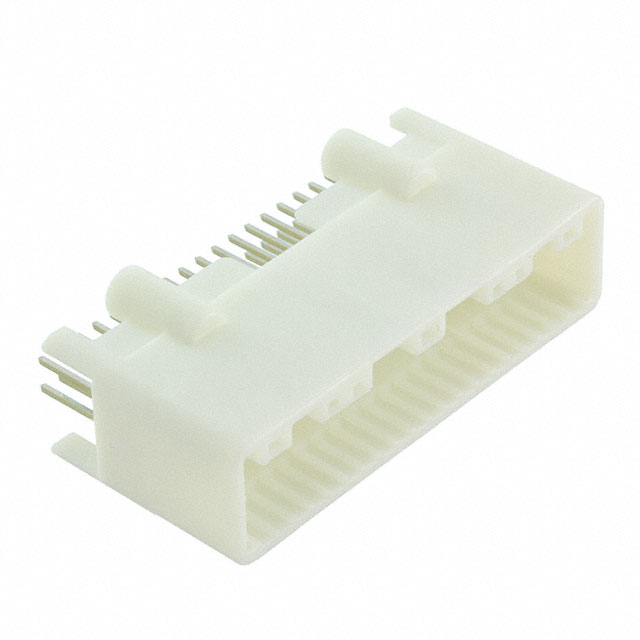

1376113-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Insulation Height :

0.921 23.39mm

Contact Type :

Male Pin

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (DC) :

12V

ELV :

Compliant

PCB Thickness :

1.6mm

Polarization Key :

POLARIZED HOUSING

Style :

Board to Cable/Wire

Termination :

Solder

Tab Thickness :

640μm

Height :

23.4mm

Factory Lead Time :

17 Weeks

Applications :

Automotive

Fastening Type :

Latch Holder

Feature :

Mounting Flange

Reference Standard :

UL

Depth :

15.3mm

Published :

2004

Contact Shape :

Square

Reliability :

COMMERCIAL

Width :

15.2908mm

Shielding :

Unshielded

Operating Temperature :

-30°C~105°C

Width - Tab :

635μm

Flammability Rating :

UL94 HB

Number of Signal Positions :

40

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tube

Pitch - Mating :

0.087 2.20mm

Circuit Application :

Signal

Housing Material :

Polybutylene

ECCN Code :

EAR99

Row Spacing - Mating :

0.118 (3.00mm)

IEC Conformance :

No

Voltage - Rated :

12VDC

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

2

JESD-609 Code :

e3

Number of Positions Loaded :

All

Housing Color :

Natural

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Length - Post :

0.157 4.00mm

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Option :

GENERAL PURPOSE

Contact Length - Mating :

0.217 5.50mm

Contact Finish - Mating :

Tin

Radiation Hardening :

No

Mating Contact Pitch :

0.087 inch

Gender :

FEMALE

Orientation :

Vertical

Number of Conductors :

ONE

Empty Shell :

No

RoHS Status :

RoHS Compliant

Number of Rows :

2

MIL Conformance :

No

Mounting Type :

Through Hole

Length :

49.4mm

Contact Material :

Brass

Material Flammability Rating :

UL94 HB

Mount :

Through Hole

Filter Feature :

No

Connector Type :

Header
