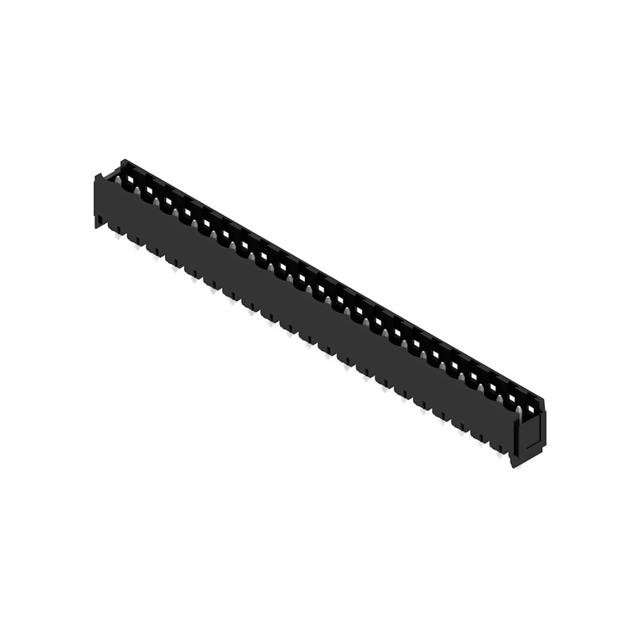

1150030000
Or copy the link below:
- Mfr.Part #
- 1150030000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 22POS VERT 5.08MM
- Stock
- 34,201
- In Stock ：
- 34,201
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Termination Style :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - IEC :
- 400V
- Contact Tail Length :
- 0.126 3.20mm
- RoHS Status :
- RoHS Compliant
- Color :
- Black
- Flammability Rating :
- UL94 V-0
- Feature :
- Interlocking (Side)
- Voltage - UL :
- 300V
- Contact Mating Finish :
- Tin
- Header Orientation :
- Vertical
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Current - IEC :
- 24A
- Factory Lead Time :
- 14 Weeks
- Series :
- Omnimate SL
- Operating Temperature :
- -50°C~100°C
- Insulation Height :
- 0.472 12.00mm
- Number of Positions :
- 22
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Number of Levels :
- 1
- Current - UL :
- 18.5A
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Pitch :
- 0.200 5.08mm
- Datasheets
- 1150030000
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1150030000 Overview
Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Omnimate SL Series.In many ways, Interlocking (Side) makes it more powerful.Operating temperature is set to -50°C~100°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
1150030000 Features
Omnimate SL series
1150030000 Applications
There are a lot of Weidmüller
1150030000 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
