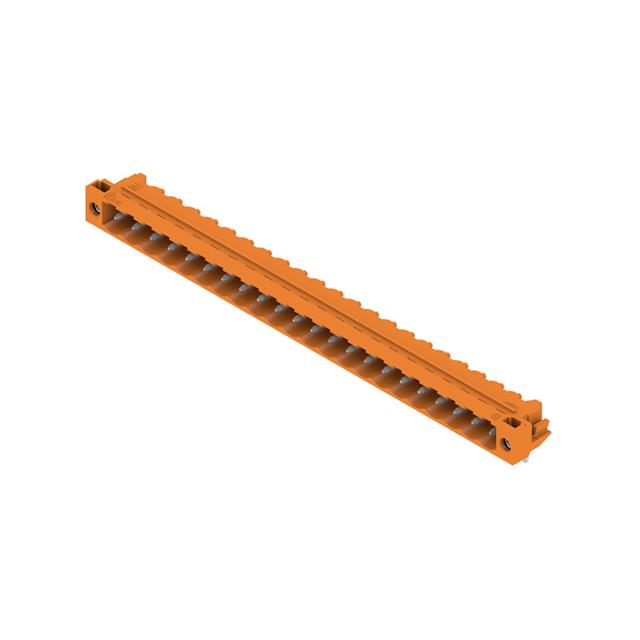

1150020000
Or copy the link below:
- Mfr.Part #
- 1150020000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 22POS 5.08MM
- Stock
- 43,923
- In Stock ：
- 43,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Voltage - Rated :
- 300V
- Header Orientation :
- 90°, Right Angle
- Insulation Material :
- Nylon
- Contact Tail Length :
- 0.126 3.20mm
- Series :
- Omnimate SL
- Voltage - IEC :
- 400V
- Operating Temperature :
- -50°C~100°C
- Number of Levels :
- 1
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 22
- Insulation Height :
- 0.335 8.51mm
- Termination Style :
- Solder
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Approval Agency :
- cURus
- Contact Mating Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.200 5.08mm
- Hole Diameter :
- 1.3 mm
- Current - UL :
- 18.5A
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 14 Weeks
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 24A
- Feature :
- Mating Flange, Solder Retention
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Color :
- Orange
- Voltage - UL :
- 300V
- RoHS Status :
- RoHS Compliant
- Datasheets
- 1150020000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1150020000 Overview
There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Omnimate SL belongs to the Omnimate SL Series.In many ways, it is more powerful due to its Mating Flange, Solder Retention feature.This device operates at a temperature of -50°C~100°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
1150020000 Features
Omnimate SL series
1150020000 Applications
There are a lot of Weidmüller
1150020000 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
