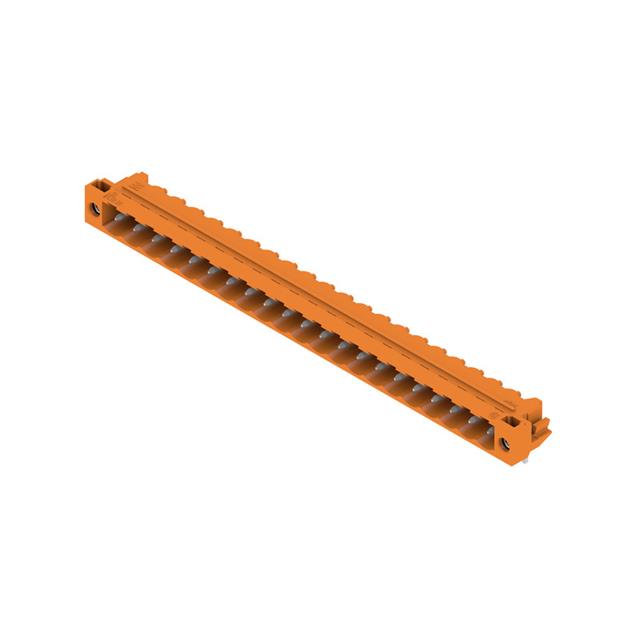

1150000000
Or copy the link below:
- Mfr.Part #
- 1150000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 21POS 5.08MM
- Stock
- 30,255
- In Stock ：
- 30,255
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Insulation Material :
- Nylon
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 14 Weeks
- Number of Positions :
- 21
- Pitch :
- 0.200 5.08mm
- Feature :
- Mating Flange, Solder Retention
- Voltage - Rated :
- 300V
- Contact Tail Length :
- 0.126 3.20mm
- Mounting Type :
- Through Hole
- Contact Mating Finish :
- Tin
- Current - UL :
- 18.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Operating Temperature :
- -50°C~100°C
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Levels :
- 1
- Voltage - UL :
- 300V
- Series :
- Omnimate SL
- Header Orientation :
- 90°, Right Angle
- Current Rating :
- 24A
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Color :
- Orange
- Termination Style :
- Solder
- Hole Diameter :
- 1.3 mm
- Material Flammability Rating :
- UL94 V-0
- Voltage - IEC :
- 400V
- Contact Material :
- COPPER ALLOY
- Approval Agency :
- cURus
- Insulation Height :
- 0.335 8.51mm
- Datasheets
- 1150000000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1150000000 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate SL Series.It is more powerful in many ways due to its Mating Flange, Solder Retention feature.It operates at an operating temperature of -50°C~100°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
1150000000 Features
Omnimate SL series
1150000000 Applications
There are a lot of Weidmüller
1150000000 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
