102802-8

Share

Or copy the link below:

Mfr.Part #
102802-8
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER R/A 40POS 2.54MM
Stock
68
In Stock :
68

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Published :
2009
Contact Type :
Male Pin
Style :
Board to Board or Cable
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Number of Positions :
40
Mixed Contacts :
No
Connector Type :
Header
Shrouding :
Shrouded - 3 Wall
RoHS Status :
Non-RoHS Compliant
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Number of Positions Loaded :
All
ELV :
Non-Compliant
Contact Finish - Post :
Tin-Lead
MIL Conformance :
No
Height :
8.128mm
Insulation Height :
0.319 8.10mm
PCB Mounting Orientation :
RIGHT ANGLE
Contact Material :
Phosphor Bronze
Contact Finish Thickness - Mating :
30.0μin 0.76μm
PCB Mount Alignment :
Without
Circuit Application :
Signal
Contact Shape :
Square
Mating Alignment :
With
Insulation Resistance :
1GOhm
Flammability Rating :
UL94 V-0
Termination :
Solder
Option :
GENERAL PURPOSE
Contact Finish Thickness - Post :
100.0μin 2.54μm
Fastening Type :
Push-Pull
Contact Length - Mating :
0.320 8.13mm
Mount :
Through Hole
Insulation Color :
Black
Factory Lead Time :
23 Weeks
Contact Length - Post :
0.125 3.18mm
Contact Finish - Mating :
Gold
Material Flammability Rating :
UL94 V-0
DIN Conformance :
No
Gender :
Male
Operating Supply Voltage :
250V
IEC Conformance :
No
Radiation Hardening :
No
Packaging :
Tube
Voltage - Rated :
250VAC
Mating Post Length :
8.0772mm
Orientation :
RIGHT ANGLE
Number of Rows :
2
Filter Feature :
No
Pitch - Mating :
0.100 2.54mm
Insulation Material :
Thermoplastic
Series :
AMPMODU Mod II
Lead Length :
3.175mm
Contact Current Rating :
2A
Operating Temperature :
-65°C~105°C
Mounting Type :
Through Hole, Right Angle
PCB Thickness :
1.397mm
UL Flammability Code :
94V-0
Length - Tail :
3.175mm
Row Spacing - Mating :
0.100 (2.54mm)
Datasheets
102802-8
Introducing Headers, Male Pins TE Connectivity AMP Connectors 102802-8 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~105°C, Mounting Type:Through Hole, Right Angle, 102802-8 pinout, 102802-8 datasheet PDF, 102802-8 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 102802-8 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

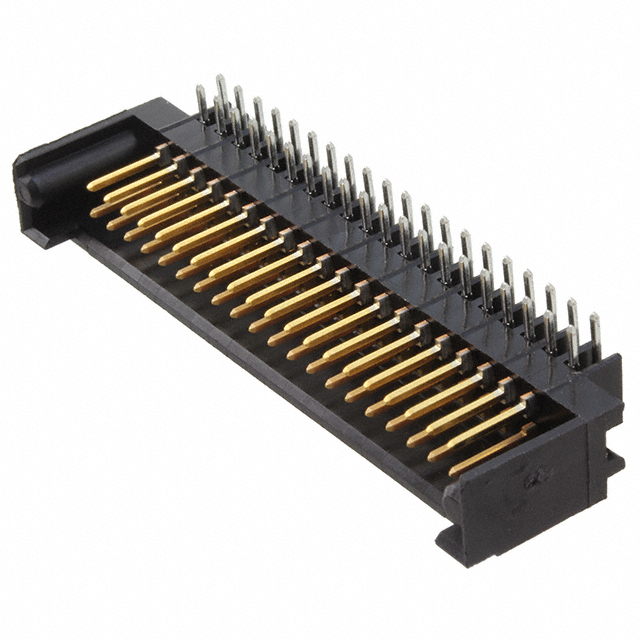

TE Connectivity AMP Connectors 102802-8


AMPMODU Mod II Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Thermoplastic 40-Position Board to Board or Cable 0.319 8.10mm Height

102802-8 Overview


It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tube case is used.It belongs to the AMPMODU Mod II Series of products.The part is mounted by Through Hole.This memory's operating supply voltage is 250V.The device runs in -65°C~105°C Operating Temperature.

102802-8 Features


AMPMODU Mod II series


102802-8 Applications


There are a lot of TE Connectivity AMP Connectors
102802-8 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
