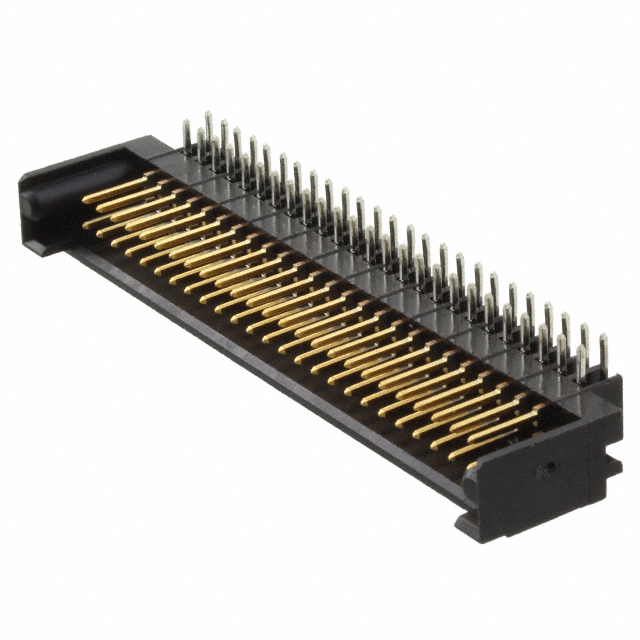

102802-4
Or copy the link below:
- Mfr.Part #
- 102802-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 50POS 2.54MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Material :
- Phosphor Bronze
- PCB Thickness :
- 1.397mm
- ELV :
- Non-Compliant
- Voltage - Rated :
- 250VAC
- Connector Type :
- Header
- Radiation Hardening :
- No
- DIN Conformance :
- No
- Insulation Resistance :
- 1GOhm
- Contact Length - Post :
- 0.125 3.18mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 50
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Board or Cable
- Mating Post Length :
- 8.0772mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated AC :
- 250V
- Contact Current Rating :
- 2A
- Contact Finish - Mating :
- Gold
- Factory Lead Time :
- 23 Weeks
- Shrouding :
- Shrouded - 3 Wall
- PCB Mount Alignment :
- Without
- Mounting Type :
- Through Hole, Right Angle
- Operating Temperature :
- -65°C~105°C
- Mixed Contacts :
- No
- Contact Finish - Post :
- Tin-Lead
- IEC Conformance :
- No
- RoHS Status :
- Non-RoHS Compliant
- Length - Tail :
- 3.175mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Published :
- 2009
- Filter Feature :
- No
- Orientation :
- RIGHT ANGLE
- Fastening Type :
- Push-Pull
- Packaging :
- Tube
- Insulation Material :
- Thermoplastic
- Height :
- 8.128mm
- Mating Alignment :
- With
- Circuit Application :
- Signal
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- PCB Mounting Orientation :
- RIGHT ANGLE
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.320 8.13mm
- Lead Length :
- 3.175mm
- Operating Supply Voltage :
- 250V
- Number of Rows :
- 2
- Current Rating :
- 3A
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Insulation Height :
- 0.319 8.10mm
- Mount :
- Through Hole
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Type :
- Male Pin
- UL Flammability Code :
- 94V-0
- Contact Shape :
- Square
- Insulation Color :
- Black
- Series :
- AMPMODU Mod II
- Datasheets
- 102802-4
AMPMODU Mod II Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Thermoplastic 50-Position Board to Board or Cable 0.319 8.10mm Height
102802-4 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the AMPMODU Mod II Series of products.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
102802-4 Features
AMPMODU Mod II series
102802-4 Applications
There are a lot of TE Connectivity AMP Connectors
102802-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
