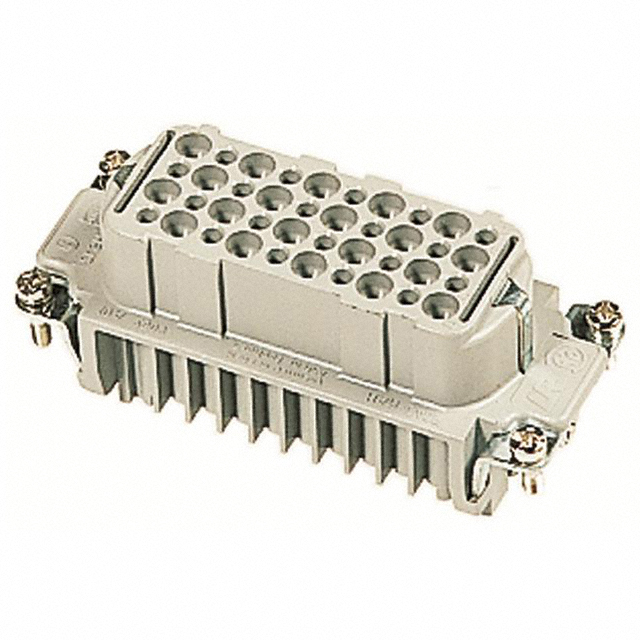

09210403101
Or copy the link below:
- Mfr.Part #
- 09210403101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 40POS+1GND CRIMP
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Lead Free :
- Lead Free
- Insulation Resistance :
- 10GOhm
- IEC Conformance :
- No
- Working Voltage :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Test Voltage :
- 2kV
- Contact Type :
- Han® D
- Number of Poles :
- 40
- Gender :
- FEMALE
- Factory Lead Time :
- 4 Weeks
- Body/Shell Style :
- PLUG
- Additional Feature :
- ROHS COMPL. and M3X10 SCREWS
- Contact Resistance :
- 3mOhm
- Body Breadth :
- 1.339 inch
- Series :
- Han® B
- Housing Material :
- Polycarbonate (PC)
- Wire Gauge (Min) :
- 26 AWG
- Material :
- Polycarbonate
- Depth :
- 37.1mm
- MIL Conformance :
- No
- Mounting Type :
- CABLE
- Number of Rows :
- 4
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 40
- Board Mounting Option :
- Mounting Flange
- Number of Positions :
- 40+Ground
- Wire Gauge (Max) :
- 14 AWG
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- yes
- Number of Conductors :
- ONE
- Size :
- 16b
- Color :
- Gray
- Ratings :
- IP65
- Mounting Option 2 :
- LOCKING
- HTS Code :
- 8536.69.80.00
- Reference Standard :
- UL, CSA
- Test Current :
- 10A
- Pbfree Code :
- yes
- Max Current Rating :
- 10A
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated AC :
- 250V
- Connector Type :
- Insert without Contacts
- Contact Finish - Mating :
- NOT SPECIFIED
- Operating Temperature :
- -40°C~125°C
- ECCN Code :
- EAR99
- Mixed Contacts :
- yes
- Contact Plating :
- Silver
- Contact Material :
- Copper
- REACH SVHC :
- No SVHC
- Flammability Rating :
- UL94 V-0
- Mounting Option 1 :
- DETENT
- Termination Style :
- Crimp
- Current Rating :
- 10A
- Voltage - Rated DC :
- 250V
- Length :
- 84.5mm
- Reliability :
- COMMERCIAL
- Orientation :
- Straight
- Durability :
- 500 Cycles
- Packaging :
- Bulk
- Datasheets
- 09210403101
09210403101 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
