Mfr.Part #
09330242701
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description

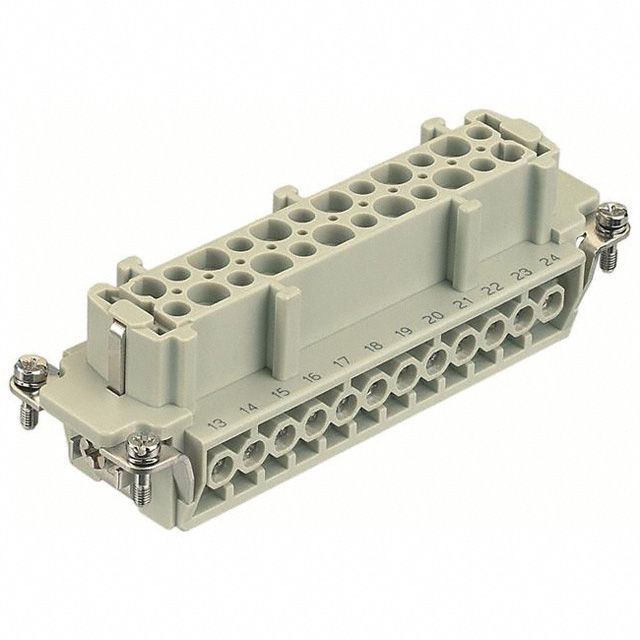

INSERT FEMALE 24POS+1GND SCREW
Stock
10
In Stock :
10

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Heavy Duty Connector Inserts, Modules
Contact Style :
RND PIN-SKT
Contact Material :
COPPER ALLOY
Color :
Gray
Gender :
FEMALE
Contact Resistance :
1MOhm
Material :
Polycarbonate
IEC Conformance :
No
MIL Conformance :
No
Factory Lead Time :
5 Weeks
Termination Style :
Screw
REACH SVHC :
No SVHC
Mixed Contacts :
yes
Number of Pins :
24
Length :
111mm
Max Current Rating :
16A
Wire Gauge (Min) :
18 AWG
Current Rating :
16A
Working Voltage :
380V
Reference Standard :
UL, CSA
Operating Temperature :
-40°C~125°C
Insulation Resistance :
10000000000Ohm
Voltage - Rated AC :
380V
Reliability :
COMMERCIAL
Number of Rows :
2
Voltage - Rated DC :
500V
Option :
GENERAL PURPOSE
Size :
24b
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Series :
Han® E
ECCN Code :
EAR99
Number of Conductors :
ONE
Operating Supply Voltage :
600V
Orientation :
Straight
Connector Type :
INSERT
Total Number of Contacts :
24
Additional Feature :
RoHS Compliant
Material Flammability Rating :
UL94 V-0
Housing Material :
Polycarbonate (PC)
Depth :
34.6mm
Mounting Option 1 :
M3
HTS Code :
8536.69.80.00
Contact Finish :
Silver
Durability :
500 Cycles
Number of Positions :
24+Ground
Test Current :
16A
Body Breadth :
1.339 inch
Pbfree Code :
yes
Flammability Rating :
UL94 V-0
Body/Shell Style :
PLUG
DIN Conformance :
No
Packaging :
Bulk
Lead Free :
Lead Free
Ratings :
IP65
RoHS Status :
ROHS3 Compliant
Wire Gauge (Max) :
14 AWG
Mounting Type :
CABLE
