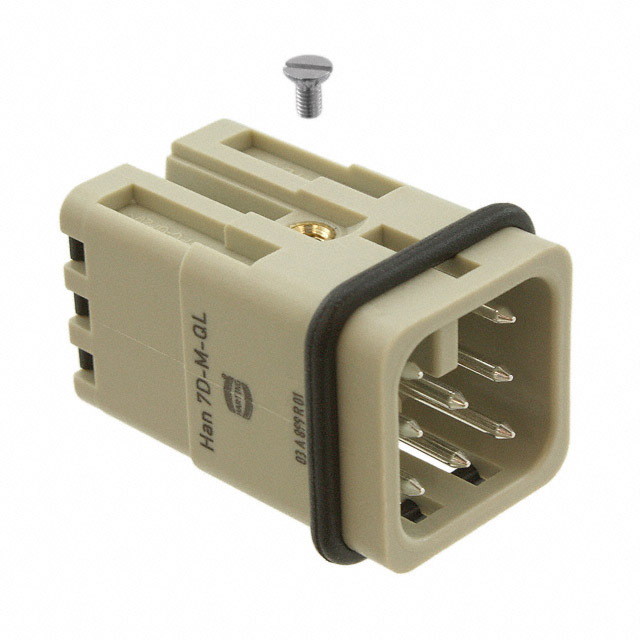

09210072632
Or copy the link below:
- Mfr.Part #
- 09210072632
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 7POS+1GND PUSH IN
- Stock
- 89
- In Stock ：
- 89
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Series :
- Han® 7D
- Color :
- Gray
- Contact Finish :
- Silver
- Number of Positions :
- 7+Ground
- Depth :
- 35.6mm
- Length :
- 21mm
- Factory Lead Time :
- 5 Weeks
- Flammability Rating :
- UL94 HB
- Wire Gauge (Max) :
- 22 AWG
- Housing Material :
- Polyamide (PA), Nylon
- Size :
- 3A
- Operating Temperature :
- -40°C~125°C
- Max Current Rating :
- 10A
- Wire Gauge (Min) :
- 16 AWG
- Min Operating Temperature :
- -40°C
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Current Rating (Amps) :
- 10A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Pins :
- 8
- Current Rating :
- 10A
- Contact Material :
- COPPER ALLOY
- Contact Plating :
- Silver
- Material Flammability Rating :
- UL94 HB
- Gender :
- Male
- Number of Rows :
- 3
- Orientation :
- Straight
- Connector Type :
- INSERT
- Number of Contacts :
- 8
- Voltage - Rated :
- 600V
- Termination Style :
- Push In with Lock
- Max Operating Temperature :
- 125°C
- Datasheets
- 09210072632
09210072632 Documents
09210072632 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
