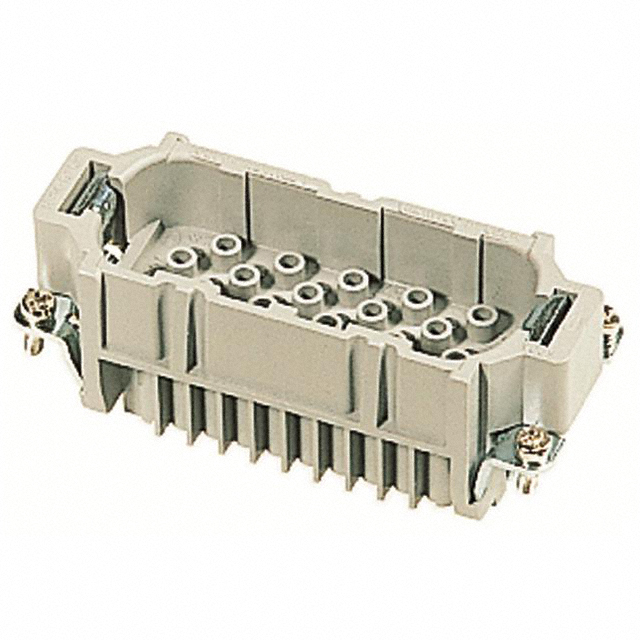

09210403001
Or copy the link below:
- Mfr.Part #
- 09210403001
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 40POS+1GND CRIMP
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Factory Lead Time :
- 4 Weeks
- Body Breadth :
- 1.339 inch
- REACH SVHC :
- No SVHC
- Current Rating :
- 10A
- Body/Shell Style :
- Receptacle
- Color :
- Gray
- DIN Conformance :
- yes
- Voltage - Rated AC :
- 250V
- Connector Type :
- Insert without Contacts
- Orientation :
- Straight
- Depth :
- 33.9mm
- Max Current Rating :
- 10A
- Contact Resistance :
- 3mOhm
- Wire Gauge (Min) :
- 26 AWG
- Insulation Resistance :
- 10GOhm
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- Crimp
- Mounting Option 1 :
- M3
- Number of Positions :
- 40+Ground
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- Additional Feature :
- RoHS Compliant
- Wire Gauge (Max) :
- 14 AWG
- Mounting Option 2 :
- LOCKING
- Size :
- 16b
- Mixed Contacts :
- yes
- Contact Type :
- Han® D
- Total Number of Contacts :
- 40
- Lead Free :
- Lead Free
- Length :
- 84.5mm
- Series :
- Han® B
- Test Current :
- 10A
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polycarbonate (PC)
- Reliability :
- COMMERCIAL
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Durability :
- 500 Cycles
- MIL Conformance :
- No
- Contact Material :
- Copper
- Number of Poles :
- 40
- Operating Temperature :
- -40°C~125°C
- Ratings :
- IP65
- Pbfree Code :
- yes
- Number of Rows :
- 4
- Gender :
- Male
- Contact Finish - Mating :
- NOT SPECIFIED
- Voltage - Rated DC :
- 250V
- Working Voltage :
- 250V
- Contact Plating :
- Silver
- Test Voltage :
- 2kV
- HTS Code :
- 8536.69.80.00
- Reference Standard :
- UL, CSA
- Mounting Type :
- CABLE
- Datasheets
- 09210403001
09210403001 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
