09210253101

Share

Or copy the link below:

Mfr.Part #
09210253101
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description
INSERT FEMALE 25POS+1GND CRIMP
Stock
20
In Stock :
20

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Heavy Duty Connector Inserts, Modules
Body/Shell Style :
PLUG
Ratings :
IP65
Mounting Option 1 :
DETENT
Option :
GENERAL PURPOSE
Wire Gauge (Max) :
14 AWG
Total Number of Contacts :
25
Max Current Rating :
10A
Contact Type :
Han® D
Mounting Option 2 :
LOCKING
ECCN Code :
EAR99
Contact Finish - Mating :
NOT SPECIFIED
Color :
Gray
Current Rating :
10A
Number of Rows :
3
Material Flammability Rating :
UL94 HB
Insulation Resistance :
10GOhm
Reference Standard :
UL, CSA
Voltage - Rated DC :
250V
Reliability :
COMMERCIAL
Operating Temperature :
-40°C~125°C
Number of Conductors :
ONE
RoHS Status :
ROHS3 Compliant
Board Mounting Option :
Mounting Flange
Length :
73mm
Lead Free :
Lead Free
Number of Pins :
25
Operating Supply Voltage :
600V
Gender :
FEMALE
MIL Conformance :
No
Factory Lead Time :
3 Weeks
Mounting Type :
CABLE
Connector Type :
Insert without Contacts
Size :
16A
Voltage - Rated AC :
250V
Flammability Rating :
UL94 HB
Dielectric Withstanding Voltage :
4000VAC V
Mixed Contacts :
yes
Number of Positions :
25+Ground
Test Current :
10A
Contact Material :
Copper
REACH SVHC :
No SVHC
Packaging :
Bulk
DIN Conformance :
No
Depth :
35.9mm
Series :
Han® D
Contact Resistance :
3mOhm
Contact Plating :
Silver
IEC Conformance :
No
Working Voltage :
250V
Material :
Thermoplastic
Body Breadth :
0.898 inch
Orientation :
Straight
Wire Gauge (Min) :
26 AWG
Housing Material :
Polyamide (PA), Nylon
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Durability :
500 Cycles
Pbfree Code :
yes
Test Voltage :
2kV
Termination Style :
Crimp
Introducing Heavy Duty Connector Inserts, Modules HARTING 09210253101 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~125°C, Number of Pins:25, Mounting Type:CABLE, 09210253101 pinout, 09210253101 datasheet PDF, 09210253101 amp .Beyond Heavy Duty Connector Inserts, Modules HARTING 09210253101 ,we also offer 09330242701, 09200162812, 09140083011, Our vast inventory has you covered. Contact us now for immediate solutions.

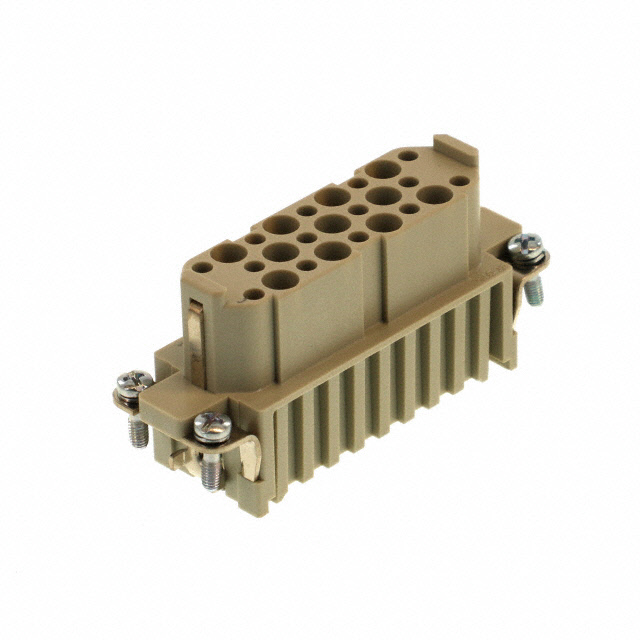

HARTING 09210253101
