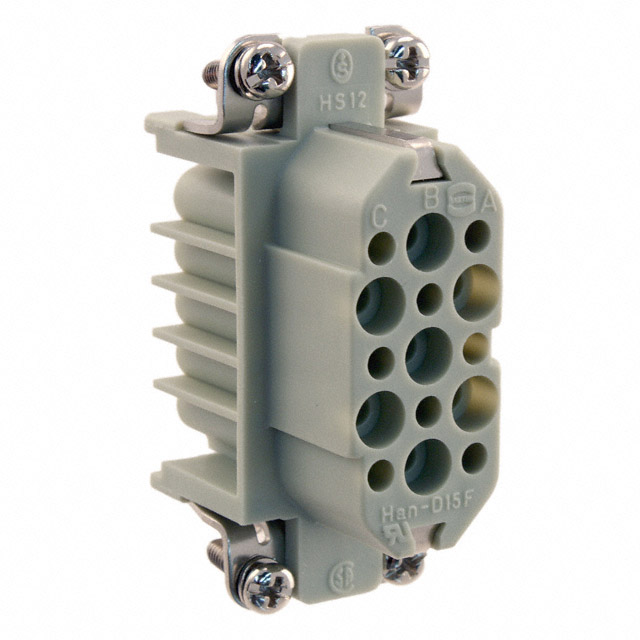

09210153101
Or copy the link below:
- Mfr.Part #
- 09210153101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 15POS+1GND CRIMP
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Durability :
- 500 Cycles
- Voltage - Rated DC :
- 250V
- Lead Free :
- Lead Free
- Flammability Rating :
- UL94 HB
- Option :
- GENERAL PURPOSE
- Mounting Option 1 :
- DETENT
- REACH SVHC :
- No SVHC
- Series :
- Han® D
- Housing Material :
- Polyamide (PA), Nylon
- Connector Type :
- Insert without Contacts
- Contact Type :
- Han® D
- Test Voltage :
- 2kV
- Total Number of Contacts :
- 15
- Contact Material :
- Copper
- Number of Pins :
- 15
- Working Voltage :
- 250V
- Voltage - Rated AC :
- 250V
- Body Breadth :
- 0.898 inch
- Insulation Resistance :
- 10GOhm
- Board Mounting Option :
- Mounting Flange
- RoHS Status :
- ROHS3 Compliant
- Number of Conductors :
- ONE
- Wire Gauge (Min) :
- 26 AWG
- Ratings :
- IP65
- Contact Plating :
- Silver
- Number of Positions :
- 15+Ground
- Depth :
- 33mm
- MIL Conformance :
- No
- Pbfree Code :
- yes
- Orientation :
- Straight
- Gender :
- FEMALE
- Test Current :
- 10A
- Termination Style :
- Crimp
- Mixed Contacts :
- yes
- Reference Standard :
- UL, CSA
- Wire Gauge (Max) :
- 14 AWG
- DIN Conformance :
- No
- Operating Temperature :
- -40°C~125°C
- Packaging :
- Bulk
- Mounting Type :
- CABLE
- Number of Rows :
- 2
- Factory Lead Time :
- 4 Weeks
- Max Current Rating :
- 10A
- Body/Shell Style :
- PLUG
- Reliability :
- COMMERCIAL
- Mounting Option 2 :
- LOCKING
- Contact Finish - Mating :
- NOT SPECIFIED
- Material Flammability Rating :
- UL94 HB
- Dielectric Withstanding Voltage :
- 4000VAC V
- Color :
- Gray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 3mOhm
- Additional Feature :
- ROHS COMPL. and M3X10 SCREWS
- IEC Conformance :
- No
- Current Rating :
- 10A
- Length :
- 56.5mm
- Datasheets
- 09210153101
09210153101 Documents
09210153101 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
