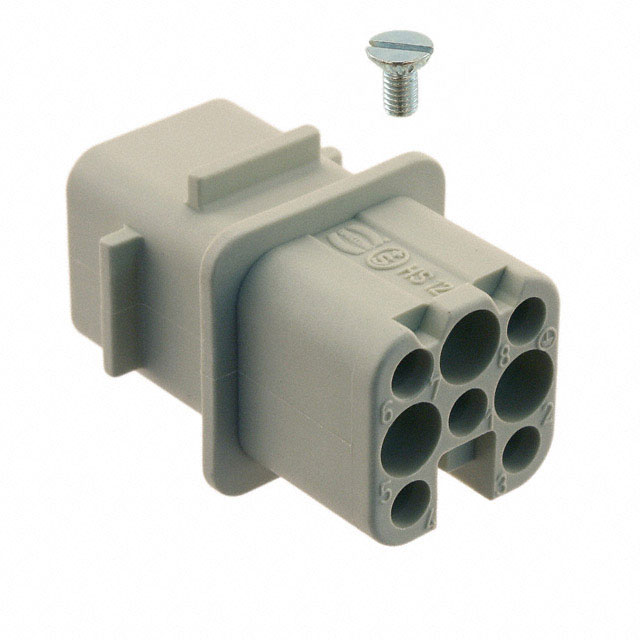

09210073131
Or copy the link below:
- Mfr.Part #
- 09210073131
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 7POS+1GND CRIMP
- Stock
- 33
- In Stock ：
- 33
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Mounting Option 2 :
- LOCKING
- Voltage - Rated DC :
- 250V
- Number of Rows :
- 3
- Color :
- Gray
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Mating :
- NOT SPECIFIED
- MIL Conformance :
- No
- Number of Positions :
- 7+Ground
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- yes
- Termination Style :
- Crimp
- Housing Material :
- Polyamide (PA), Nylon
- Size :
- 3A
- Reference Standard :
- UL, CSA
- Voltage - Rated AC :
- 250V
- Working Voltage :
- 250V
- Durability :
- 500 Cycles
- Contact Type :
- Han® D
- Series :
- Han® 7D
- Factory Lead Time :
- 3 Weeks
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 14 AWG
- Pbfree Code :
- yes
- Contact Material :
- Copper
- Body/Shell Style :
- PLUG
- Number of Contacts :
- 7
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- FEMALE
- Number of Conductors :
- ONE
- DIN Conformance :
- No
- Length :
- 21mm
- Material :
- Polyamide
- Flammability Rating :
- UL94 HB
- Connector Type :
- Insert without Contacts
- Mounting Option 1 :
- GUIDE SLOT
- Wire Gauge (Min) :
- 26 AWG
- Number of Pins :
- 8
- Max Current Rating :
- 10A
- Packaging :
- Bulk
- Orientation :
- Straight
- Contact Plating :
- Silver
- Ratings :
- IP65
- Material Flammability Rating :
- UL94 HB
- Depth :
- 33.5mm
- Current Rating :
- 10A
- Test Current :
- 10A
- Insulation Resistance :
- 10000000000Ohm
- Additional Feature :
- RoHS Compliant
- REACH SVHC :
- No SVHC
- Mounting Type :
- CABLE
- Operating Temperature :
- -40°C~125°C
- IEC Conformance :
- No
- Reliability :
- COMMERCIAL
- Datasheets
- 09210073131
09210073131 Documents
