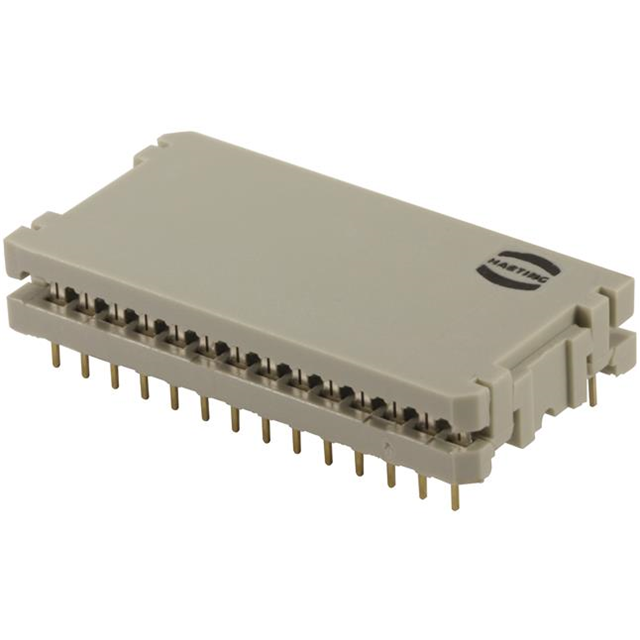

09170409622

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

Packaging :

Bulk

UL Flammability Code :

94V-0

Contact Current Rating :

1A

Depth :

18.7mm

Working Voltage :

250V

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Gender :

Male

ECCN Code :

EAR99

Current Rating :

2A

Orientation :

RIGHT ANGLE

Material :

Thermoplastic

Series :

SEK

Reference Standard :

UL

Number of Positions Loaded :

All

REACH SVHC :

No SVHC

Color :

Beige

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Board-Side Pitch :

0.100 2.54mm

Number Of PCB Rows :

2

IEC Conformance :

No

Number of Rows :

2

Filter Feature :

No

Feature :

Feed Through

Mount :

Cable, Through Hole

Contact Finish :

Tin

Voltage - Rated DC :

250V

Flammability Rating :

UL94 V-0

Factory Lead Time :

7 Weeks

Connector Type :

Ribbon Cable, DIP Header

Body Breadth :

0.736 inch

Cable Termination :

IDC

Lead Pitch :

2.54mm

Dielectric Withstanding Voltage :

500VAC V

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Insulation Resistance :

1000000000Ohm

Additional Feature :

SOLDERED DIRECTLY TO THE BOARD

Number of Poles :

40

Total Number of Contacts :

40

Row Spacing :

0.600 (15.24mm)

Contact Style :

IDC

Rated Current (Signal) :

1A

Length :

53.3mm

Pitch :

2.54mm

Contact Plating :

Gold

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Termination :

Through Hole

Number of Conductors :

ONE

Body/Shell Style :

PLUG

Operating Temperature (Min) :

-55°C

Contact Material :

Copper

Mixed Contacts :

No
