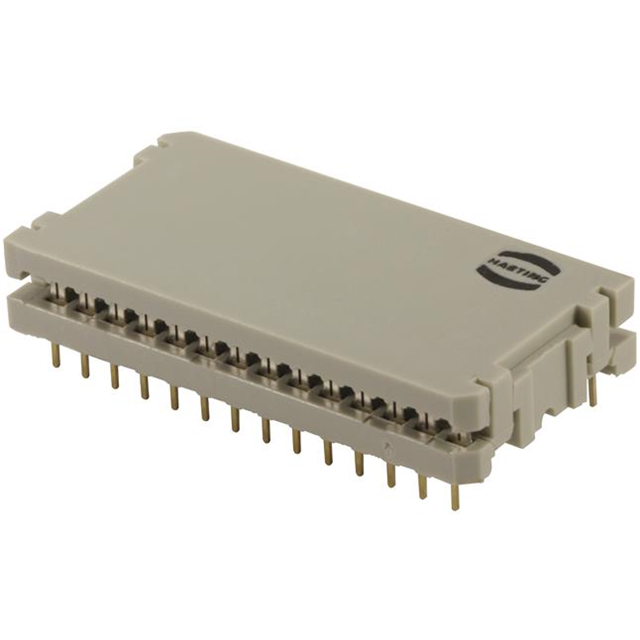

09170289622

Manufacturer :

HARTING

Product Category :

Board In, Direct Wire to Board

REACH SVHC :

No SVHC

Termination :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Contact Pattern :

RECTANGULAR

Lead Pitch :

2.54mm

Additional Feature :

SOLDERED DIRECTLY TO THE BOARD

RoHS Status :

ROHS3 Compliant

Current Rating :

2A

DIN Conformance :

No

Voltage - Rated DC :

250V

Body Breadth :

0.736 inch

Filter Feature :

No

Contact Plating :

Gold

Contact Finish :

Tin

Number of Conductors :

ONE

Contact Current Rating :

1A

Reliability :

COMMERCIAL

Factory Lead Time :

7 Weeks

Flammability Rating :

UL94 V-0

Series :

SEK

Reference Standard :

UL

Number of Rows :

2

Board-Side Pitch :

0.100 2.54mm

Color :

Beige

Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

500VAC V

Packaging :

Bulk

Row Spacing :

0.600 (15.24mm)

Number of Positions :

28

Material :

Thermoplastic

Operating Temperature (Min) :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Connector Type :

Ribbon Cable, DIP Header

IEC Conformance :

No

Pitch :

2.54mm

Depth :

18.7mm

Length :

38.1mm

MIL Conformance :

No

Insulation Resistance :

1000000000Ohm

Rated Current (Signal) :

1A

Feature :

Feed Through

Mounting Type :

Through Hole

Gender :

Male

Mount :

Cable, Through Hole

Contact Material :

Copper

ECCN Code :

EAR99

Body/Shell Style :

PLUG

Mixed Contacts :

No

Contact Style :

IDC

Number of Positions Loaded :

All

Cable Termination :

IDC

Total Number of Contacts :

28

HTS Code :

8536.69.40.51
