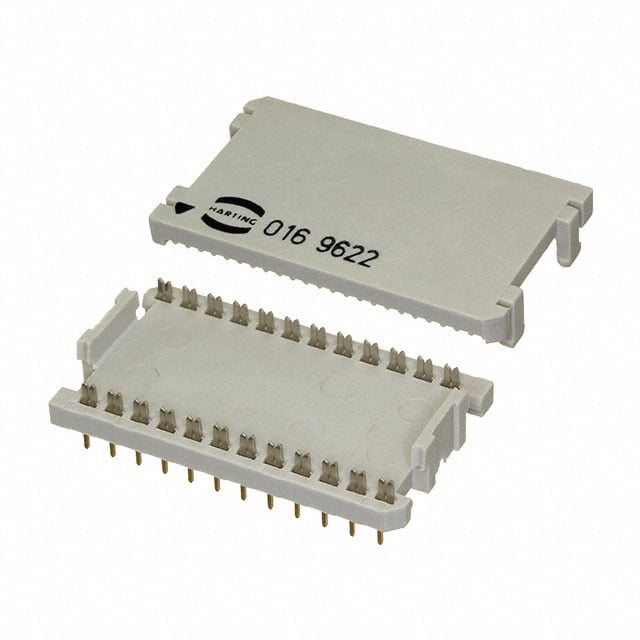

09170249622
- Mfr.Part #
- 09170249622
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN DIP HDR IDC 24POS VERT
- Stock
- 9
- In Stock :
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Board In, Direct Wire to Board
- Pitch :
- 2.54mm
- Factory Lead Time :
- 7 Weeks
- Packaging :
- Bulk
- Reference Standard :
- UL
- Body Breadth :
- 0.736 inch
- Rated Current (Signal) :
- 1A
- Depth :
- 18.7mm
- HTS Code :
- 8536.69.40.51
- Reliability :
- COMMERCIAL
- Number Of PCB Rows :
- 2
- ECCN Code :
- EAR99
- IEC Conformance :
- No
- Number of Conductors :
- ONE
- Mount :
- Cable, Through Hole
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Connector Type :
- Ribbon Cable, DIP Header
- REACH SVHC :
- No SVHC
- Contact Material :
- Copper
- Filter Feature :
- No
- Termination :
- Solder, Through Hole
- Contact Finish :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Contact Style :
- IDC
- Gender :
- Male
- Operating Temperature (Min) :
- -55°C
- Flammability Rating :
- UL94 V-0
- Working Voltage :
- 250V
- JESD-609 Code :
- e3
- Insulation Resistance :
- 1000000000Ohm
- Body/Shell Style :
- PLUG
- Cable Termination :
- IDC
- DIN Conformance :
- No
- Total Number of Contacts :
- 24
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Board-Side Pitch :
- 0.100 2.54mm
- Contact Pattern :
- RECTANGULAR
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Number of Poles :
- 24
- MIL Conformance :
- No
- Dielectric Withstanding Voltage :
- 500VAC V
- Additional Feature :
- SOLDERED DIRECTLY TO THE BOARD
- Contact Current Rating :
- 1A
- Row Spacing :
- 0.600 (15.24mm)
- Contact Plating :
- Gold
- Mounting Type :
- Through Hole
- Feature :
- Feed Through
- Voltage - Rated DC :
- 250V
- Color :
- Beige
- Number of Rows :
- 2
- Housing Material :
- Thermoplastic
- Lead Pitch :
- 2.54mm
- PCB Contact Pattern :
- RECTANGULAR
- Orientation :
- RIGHT ANGLE
- Series :
- SEK
- Length :
- 33mm
