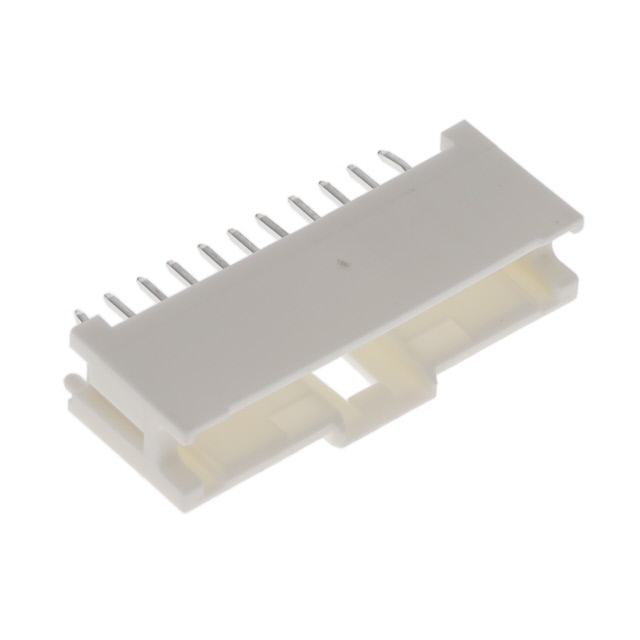

0559321110
Or copy the link below:
- Mfr.Part #
- 0559321110
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 11POS 2MM
- Stock
- 432
- In Stock ：
- 432
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.384 9.75mm
- Number of Positions :
- 11
- Applications :
- General Purpose, Industrial, Medical
- Mounting Type :
- Through Hole
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- NOT SPECIFIED
- Series :
- MicroClasp 55932
- Feature :
- Board Guide
- Contact Shape :
- Square
- Packaging :
- Tray
- Fastening Type :
- Latch Holder
- Insulation Color :
- Natural
- Contact Finish - Mating :
- Tin
- Connector Type :
- Header
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Mating :
- 0.144 3.66mm
- Contact Length - Post :
- 0.126 3.20mm
- Stack Height (Mating) :
- 13.2mm
- Number of Rows :
- 1
- Termination :
- Kinked Pin, Solder
- Overall Contact Length :
- 0.360 9.15mm
- Number of Positions Loaded :
- All
- HTS Code :
- 8536.69.40.40
- Pbfree Code :
- yes
- Factory Lead Time :
- 20 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0559321110
MicroClasp 55932 Series 1-Row Header Kinked Pin, Solder NOT SPECIFIED Tray Through Hole Tin Polybutylene Terephthalate (PBT) 11-Position Board to Cable/Wire 0.384 9.75mm Height
0559321110 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MicroClasp 55932 Series.There is the possibility of using the device for General Purpose, Industrial, Medical.In many ways, Board Guide makes it more powerful.
0559321110 Features
MicroClasp 55932 series
0559321110 Applications
There are a lot of Molex
0559321110 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
