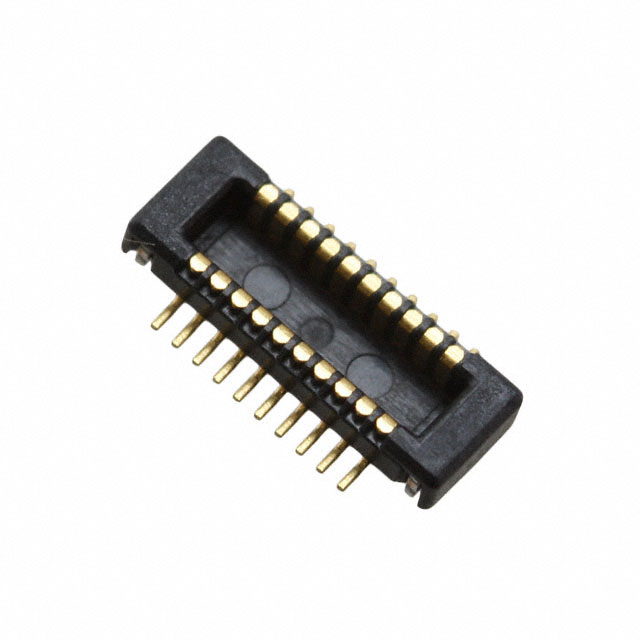

0559090274
Or copy the link below:
- Mfr.Part #
- 0559090274
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 20POS SMD GOLD
- Stock
- 18,008
- In Stock ：
- 18,008
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Additional Feature :
- SHROUDED
- Factory Lead Time :
- 9 Weeks
- Number of Positions :
- 20
- Contact Material :
- BRASS/PHOSPHOR BRONZE
- Stack Height (Mating) :
- 1.5mm
- Pitch :
- 0.016 0.40mm
- Option :
- GENERAL PURPOSE
- Height Above Board :
- 0.045 1.14mm
- RoHS Status :
- ROHS3 Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Series :
- SlimStack 55909
- Total Number of Contacts :
- 20
- MIL Conformance :
- No
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e4
- Mounting Type :
- Surface Mount
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Number of Rows :
- 2
- Filter Feature :
- No
- Contact Gender :
- Male
- Packaging :
- Tape and Reel (TR)
- Contact Finish :
- Gold
- Connector Type :
- Plug, Outer Shroud Contacts
- Feature :
- Solder Retention
- Datasheets
- 0559090274
0559090274 Documents
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 20 Positions SlimStack 55909 Gold BRASS/PHOSPHOR BRONZE
0559090274 Overview
You get it in Plug, Outer Shroud Contacts packaging.Packaged in a Tape & Reel (TR) case.Mounting type Surface Mount is selected for the device.A member of the SlimStack 55909 Series.Maintaining Solder Retention is easy.Besides that, there's also SHROUDED, to name a few.
0559090274 Features
SlimStack 55909 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0559090274 Applications
There are a lot of Molex
0559090274 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
