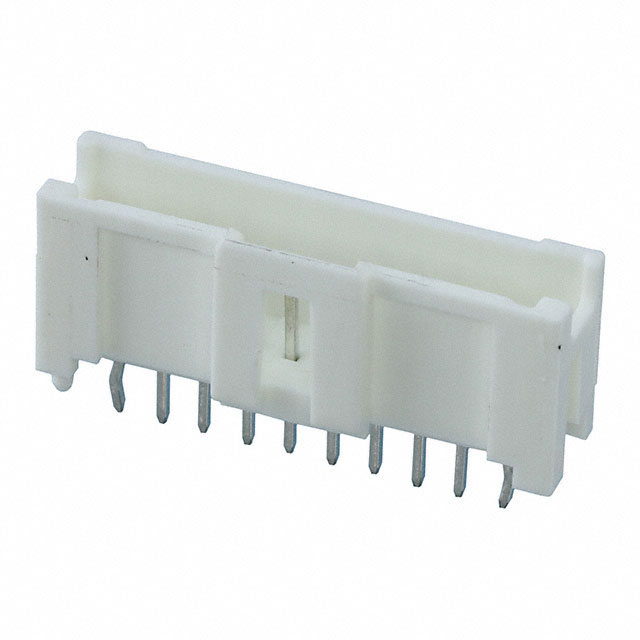

0559321010
Or copy the link below:
- Mfr.Part #
- 0559321010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2MM
- Stock
- 75,151
- In Stock ：
- 75,151
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tray
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- JESD-609 Code :
- e3
- Terminal Pitch :
- 2mm
- Contact Shape :
- Square
- Filter Feature :
- No
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Kinked Pin, Solder
- Stack Height (Mating) :
- 13.2mm
- Factory Lead Time :
- 25 Weeks
- Insulation Height :
- 0.384 9.75mm
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions Loaded :
- All
- Overall Contact Length :
- 0.360 9.15mm
- Fastening Type :
- Latch Holder
- Insulation Color :
- Natural
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Applications :
- General Purpose, Industrial, Medical
- DIN Conformance :
- No
- Contact Material :
- NOT SPECIFIED
- Feature :
- Board Guide
- IEC Conformance :
- No
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Series :
- MicroClasp 55932
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Mating :
- 0.144 3.66mm
- Number of Positions :
- 10
- Contact Length - Post :
- 0.126 3.20mm
- MIL Conformance :
- No
- Datasheets
- 0559321010
0559321010 Documents
MicroClasp 55932 Series 1-Row Header Kinked Pin, Solder NOT SPECIFIED Tray Through Hole Tin Polybutylene Terephthalate (PBT) 10-Position Board to Cable/Wire 0.384 9.75mm Height
0559321010 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the MicroClasp 55932 Series.The device could be used for the following application: General Purpose, Industrial, Medical.There are a number of advantages to its Board Guide feature.
0559321010 Features
MicroClasp 55932 series
0559321010 Applications
There are a lot of Molex
0559321010 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
