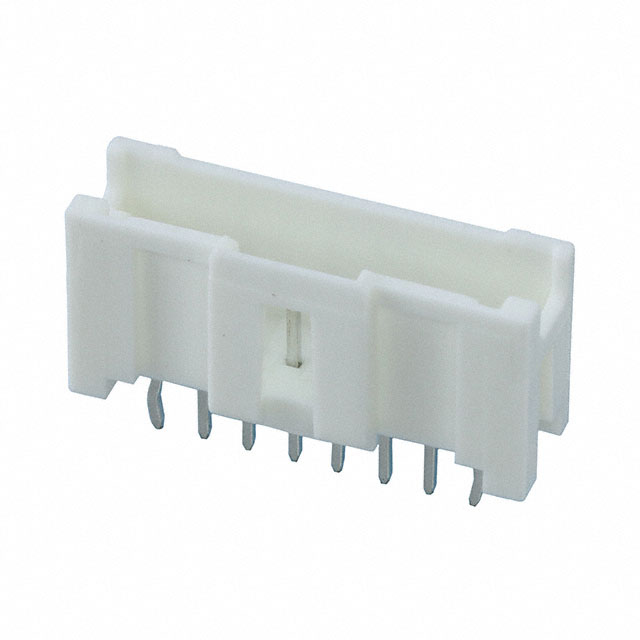

0559320830
Or copy the link below:
- Mfr.Part #
- 0559320830
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2MM
- Stock
- 13,558
- In Stock ：
- 13,558
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Packaging :
- Tray
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions :
- 8
- Stack Height (Mating) :
- 13.2mm
- Filter Feature :
- No
- Insulation Height :
- 0.384 9.75mm
- MIL Conformance :
- No
- Terminal Pitch :
- 2mm
- Pbfree Code :
- yes
- Contact Length - Post :
- 0.126 3.20mm
- Termination :
- Kinked Pin, Solder
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- MicroClasp 55932
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Number of Rows :
- 1
- Contact Length - Mating :
- 0.144 3.66mm
- Contact Material :
- NOT SPECIFIED
- Fastening Type :
- Latch Holder
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Factory Lead Time :
- 20 Weeks
- Applications :
- General Purpose, Industrial, Medical
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Overall Contact Length :
- 0.360 9.15mm
- Shrouding :
- Shrouded - 4 Wall
- DIN Conformance :
- No
- JESD-609 Code :
- e3
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Tin
- Datasheets
- 0559320830
0559320830 Documents
MicroClasp 55932 Series 1-Row Header Kinked Pin, Solder NOT SPECIFIED Tray Through Hole Tin Polybutylene Terephthalate (PBT) 8-Position Board to Cable/Wire 0.384 9.75mm Height
0559320830 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MicroClasp 55932 Series.There is the possibility of using the device for General Purpose, Industrial, Medical.
0559320830 Features
MicroClasp 55932 series
0559320830 Applications
There are a lot of Molex
0559320830 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
