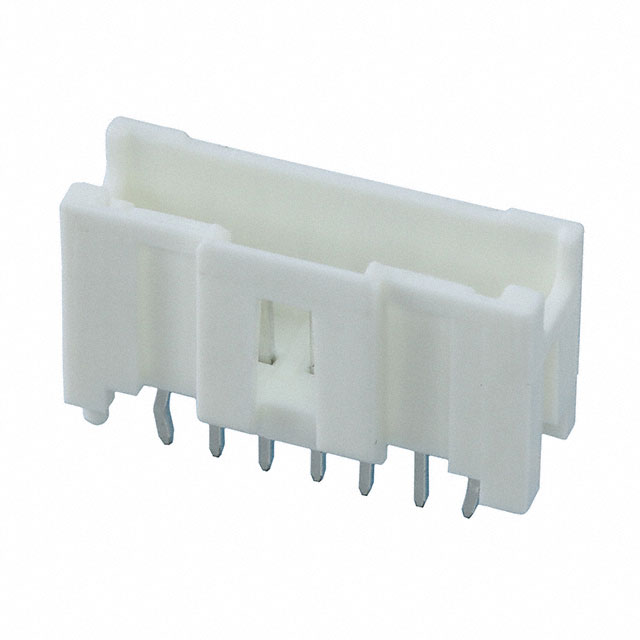

0559320710
Or copy the link below:
- Mfr.Part #
- 0559320710
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 2MM
- Stock
- 22,938
- In Stock ：
- 22,938
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.144 3.66mm
- JESD-609 Code :
- e3
- Contact Type :
- Male Pin
- RoHS Status :
- ROHS3 Compliant
- Terminal Pitch :
- 2mm
- Style :
- Board to Cable/Wire
- Mixed Contacts :
- No
- Applications :
- General Purpose, Industrial, Medical
- IEC Conformance :
- No
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Tin
- Filter Feature :
- No
- Insulation Height :
- 0.384 9.75mm
- Overall Contact Length :
- 0.360 9.15mm
- Number of Positions Loaded :
- All
- Number of Positions :
- 7
- Feature :
- Board Guide
- Factory Lead Time :
- 25 Weeks
- Connector Type :
- Header
- Contact Shape :
- Square
- Termination :
- Kinked Pin, Solder
- Pitch - Mating :
- 0.079 2.00mm
- Number of Rows :
- 1
- Mounting Type :
- Through Hole
- Insulation Color :
- Natural
- MIL Conformance :
- No
- Series :
- MicroClasp 55932
- Stack Height (Mating) :
- 13.2mm
- Contact Material :
- NOT SPECIFIED
- DIN Conformance :
- No
- Contact Length - Post :
- 0.126 3.20mm
- Packaging :
- Tray
- Fastening Type :
- Latch Holder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 0559320710
MicroClasp 55932 Series 1-Row Header Kinked Pin, Solder NOT SPECIFIED Tray Through Hole Tin Polybutylene Terephthalate (PBT) 7-Position Board to Cable/Wire 0.384 9.75mm Height
0559320710 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MicroClasp 55932 Series.There is the possibility of using the device for General Purpose, Industrial, Medical.In many ways, Board Guide makes it more powerful.
0559320710 Features
MicroClasp 55932 series
0559320710 Applications
There are a lot of Molex
0559320710 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
