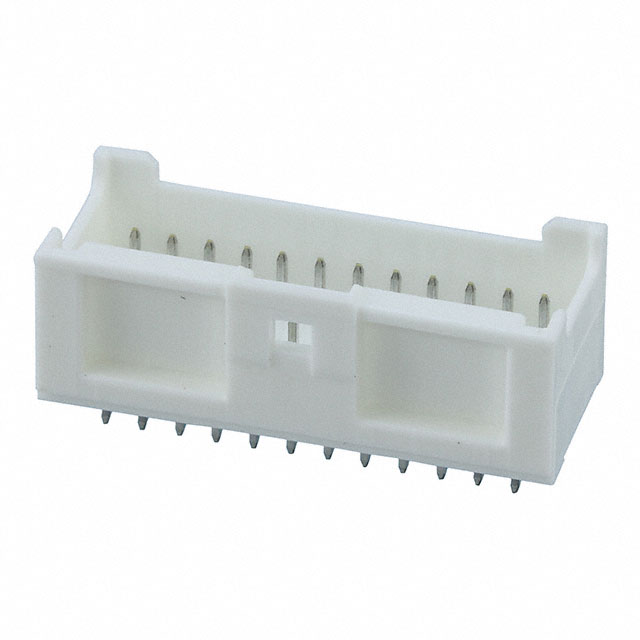

0559172410
Or copy the link below:
- Mfr.Part #
- 0559172410
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 2MM
- Stock
- 8,779
- In Stock ：
- 8,779
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Termination :
- Kinked Pin, Solder
- Number of Positions :
- 24
- Shrouding :
- Shrouded - 4 Wall
- Series :
- MicroClasp 55917
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Natural
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.126 3.20mm
- Feature :
- Board Guide
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Overall Contact Length :
- 0.366 9.30mm
- Insulation Height :
- 0.384 9.75mm
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.150 3.81mm
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Fastening Type :
- Latch Holder
- Applications :
- General Purpose, Industrial, Medical
- Packaging :
- Tray
- Pitch - Mating :
- 0.079 2.00mm
- Number of Rows :
- 2
- Contact Shape :
- Square
- Stack Height (Mating) :
- 13.2mm
- Datasheets
- 0559172410
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 24-Position Board to Cable/Wire 0.384 9.75mm Height
0559172410 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the MicroClasp 55917 Series of products.General Purpose, Industrial, Medical is a possible application for the device.Its Board Guide feature renders it more powerful in many ways.
0559172410 Features
MicroClasp 55917 series
0559172410 Applications
There are a lot of Molex
0559172410 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
