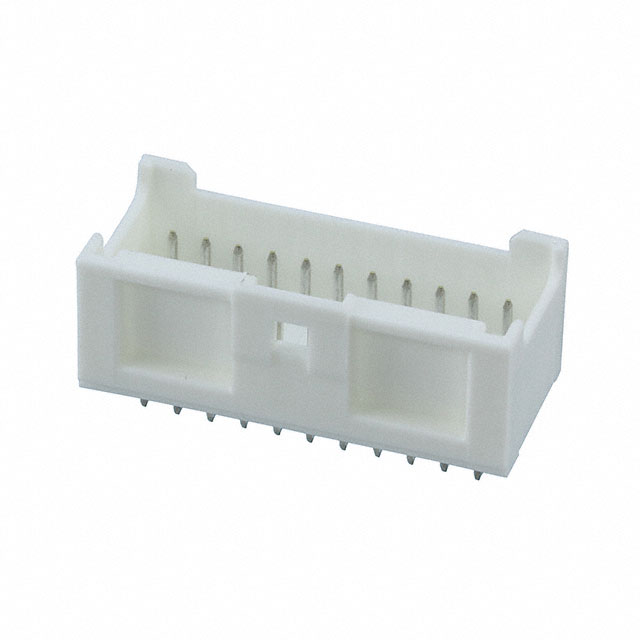

0559172210
Or copy the link below:
- Mfr.Part #
- 0559172210
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 22POS 2MM
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Number of Rows :
- 2
- Contact Finish - Mating :
- Tin
- Overall Contact Length :
- 0.366 9.30mm
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Series :
- MicroClasp 55917
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.150 3.81mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 9 Weeks
- Insulation Height :
- 0.384 9.75mm
- Pbfree Code :
- yes
- Stack Height (Mating) :
- 13.2mm
- Feature :
- Board Guide
- Termination :
- Kinked Pin, Solder
- Insulation Color :
- Natural
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Contact Length - Post :
- 0.126 3.20mm
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Applications :
- General Purpose, Industrial, Medical
- Contact Material :
- Brass
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions :
- 22
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Latch Holder
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 0559172210
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 22-Position Board to Cable/Wire 0.384 9.75mm Height
0559172210 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the MicroClasp 55917 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Medical.A number of features make the Board Guide feature more powerful.
0559172210 Features
MicroClasp 55917 series
0559172210 Applications
There are a lot of Molex
0559172210 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
