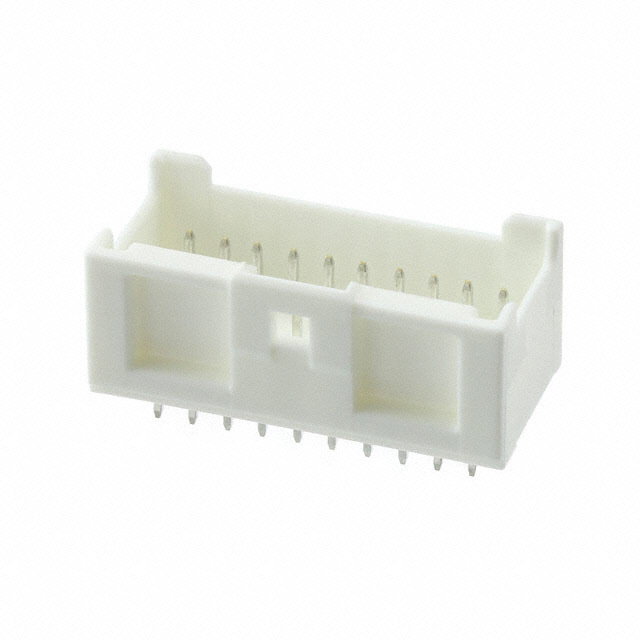

0559172010
Or copy the link below:
- Mfr.Part #
- 0559172010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2MM
- Stock
- 15,316
- In Stock ：
- 15,316
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 10 Weeks
- Contact Material :
- Brass
- Number of Rows :
- 2
- Contact Type :
- Male Pin
- Fastening Type :
- Latch Holder
- Connector Type :
- Header
- Packaging :
- Tray
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Insulation Color :
- Natural
- Overall Contact Length :
- 0.366 9.30mm
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Insulation Height :
- 0.384 9.75mm
- Number of Positions :
- 20
- Contact Length - Mating :
- 0.150 3.81mm
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Pbfree Code :
- yes
- Applications :
- General Purpose, Industrial, Medical
- Contact Length - Post :
- 0.126 3.20mm
- Stack Height (Mating) :
- 13.2mm
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.079 2.00mm
- Contact Shape :
- Square
- Feature :
- Board Guide
- Series :
- MicroClasp 55917
- Termination :
- Kinked Pin, Solder
- Datasheets
- 0559172010
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 20-Position Board to Cable/Wire 0.384 9.75mm Height
0559172010 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the MicroClasp 55917 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Medical.A number of features make it more powerful because of its Board Guide feature.
0559172010 Features
MicroClasp 55917 series
0559172010 Applications
There are a lot of Molex
0559172010 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
