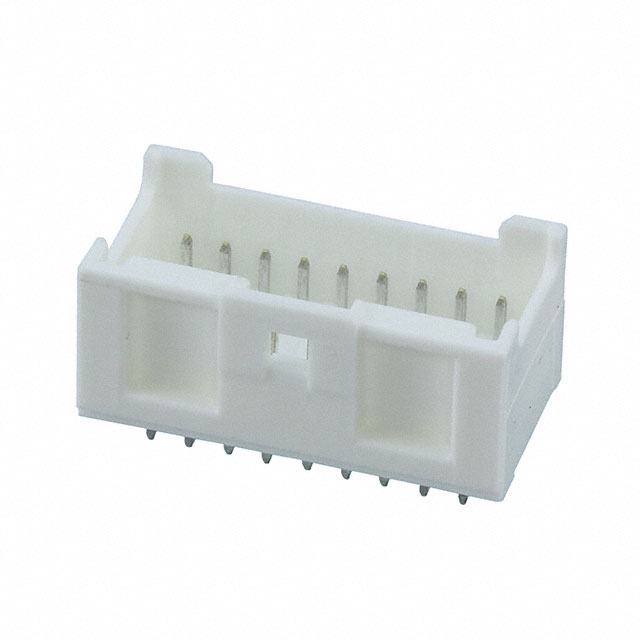

0559171830

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole

Number of Rows :

2

Overall Contact Length :

0.366 9.30mm

Insulation Color :

Natural

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Brass

Applications :

General Purpose, Industrial, Medical

Pitch - Mating :

0.079 2.00mm

Termination :

Kinked Pin, Solder

Contact Type :

Male Pin

Row Spacing - Mating :

0.197 (5.00mm)

Factory Lead Time :

5 Weeks

Number of Positions :

18

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

ECCN Code :

EAR99

Contact Length - Mating :

0.150 3.81mm

Fastening Type :

Latch Holder

Contact Length - Post :

0.126 3.20mm

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Shape :

Square

Insulation Height :

0.384 9.75mm

Contact Finish - Mating :

Tin

RoHS Status :

ROHS3 Compliant

Style :

Board to Cable/Wire

Connector Type :

Header

Packaging :

Tray

Stack Height (Mating) :

13.2mm

Series :

MicroClasp 55917
