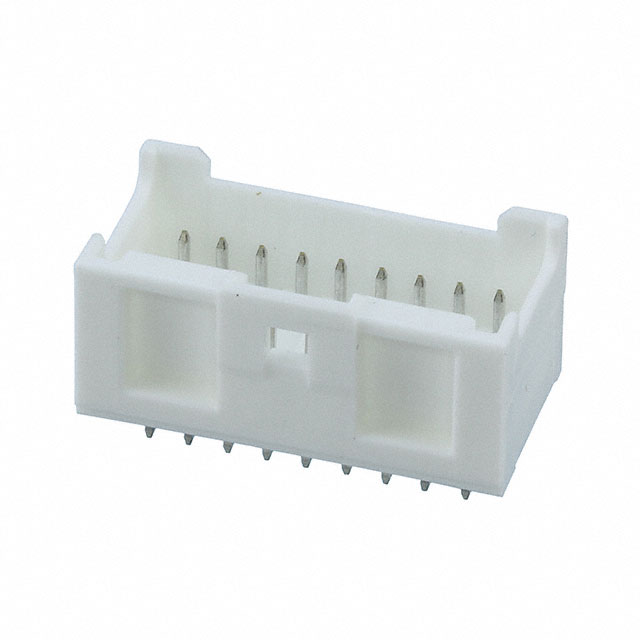

0559171810
Or copy the link below:
- Mfr.Part #
- 0559171810
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 2MM
- Stock
- 6,920
- In Stock ：
- 6,920
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Square
- Packaging :
- Tray
- Connector Type :
- Header
- Series :
- MicroClasp 55917
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Natural
- Factory Lead Time :
- 6 Weeks
- Style :
- Board to Cable/Wire
- Fastening Type :
- Latch Holder
- Termination :
- Kinked Pin, Solder
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.126 3.20mm
- Feature :
- Board Guide
- Number of Positions :
- 18
- Contact Material :
- Brass
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.150 3.81mm
- Insulation Height :
- 0.384 9.75mm
- Mounting Type :
- Through Hole
- Overall Contact Length :
- 0.366 9.30mm
- Applications :
- General Purpose, Industrial, Medical
- RoHS Status :
- ROHS3 Compliant
- Stack Height (Mating) :
- 13.2mm
- Number of Rows :
- 2
- Contact Type :
- Male Pin
- Datasheets
- 0559171810
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 18-Position Board to Cable/Wire 0.384 9.75mm Height
0559171810 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MicroClasp 55917 Series.There is the possibility of using the device for General Purpose, Industrial, Medical.In many ways, Board Guide makes it more powerful.
0559171810 Features
MicroClasp 55917 series
0559171810 Applications
There are a lot of Molex
0559171810 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
