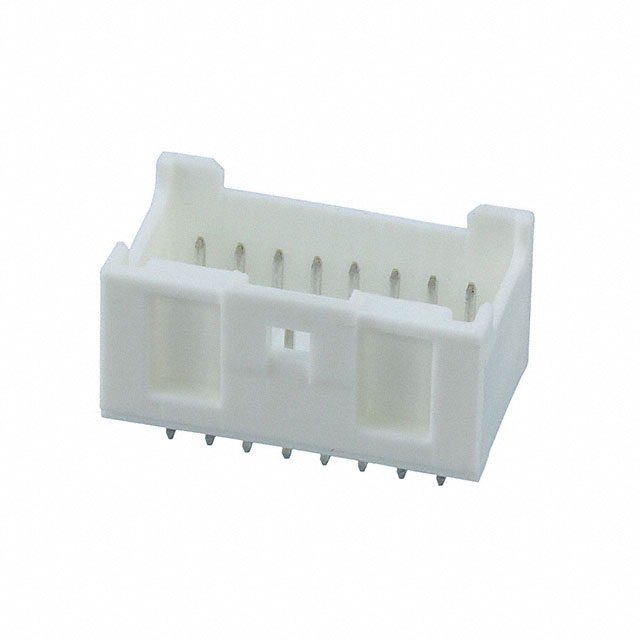

0559171630
Or copy the link below:
- Mfr.Part #
- 0559171630
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2MM
- Stock
- 5,873
- In Stock ：
- 5,873
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Stack Height (Mating) :
- 13.2mm
- RoHS Status :
- ROHS3 Compliant
- Applications :
- General Purpose, Industrial, Medical
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 16
- Contact Length - Post :
- 0.126 3.20mm
- Contact Type :
- Male Pin
- Insulation Color :
- Natural
- Pbfree Code :
- yes
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Pitch - Mating :
- 0.079 2.00mm
- ECCN Code :
- EAR99
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Fastening Type :
- Latch Holder
- HTS Code :
- 8536.69.40.40
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 9 Weeks
- Insulation Height :
- 0.384 9.75mm
- Contact Shape :
- Square
- Mounting Type :
- Through Hole
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Overall Contact Length :
- 0.366 9.30mm
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Series :
- MicroClasp 55917
- Termination :
- Kinked Pin, Solder
- Contact Length - Mating :
- 0.150 3.81mm
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Datasheets
- 0559171630
0559171630 Documents
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 16-Position Board to Cable/Wire 0.384 9.75mm Height
0559171630 Overview
The product comes in a package of Header.Through Hole is the mount type.Tray cases are used to package the product.This product is in the MicroClasp 55917 Series.There's an application for the device called General Purpose, Industrial, Medical.
0559171630 Features
MicroClasp 55917 series
0559171630 Applications
There are a lot of Molex
0559171630 Rectangular Connectors applications.
