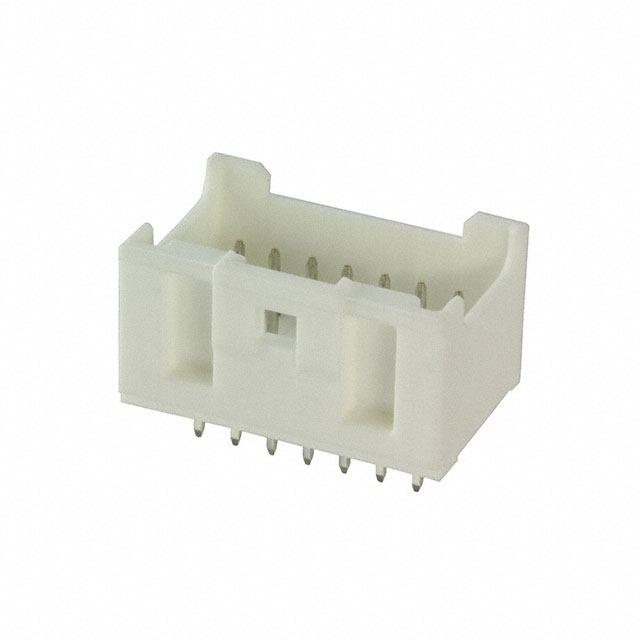

0559171430
Or copy the link below:
- Mfr.Part #
- 0559171430
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2MM
- Stock
- 11,711
- In Stock ：
- 11,711
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Material :
- Brass
- Contact Length - Mating :
- 0.150 3.81mm
- Number of Positions Loaded :
- All
- DIN Conformance :
- No
- HTS Code :
- 8536.69.40.40
- Style :
- Board to Cable/Wire
- Contact Finish - Mating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Latch Holder
- ECCN Code :
- EAR99
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- General Purpose, Industrial, Medical
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Insulation Height :
- 0.384 9.75mm
- Series :
- MicroClasp 55917
- Contact Shape :
- Square
- Filter Feature :
- No
- Mixed Contacts :
- No
- Contact Type :
- Male Pin
- Termination :
- Kinked Pin, Solder
- Insulation Color :
- Natural
- Additional Feature :
- MICROCLASP, SHROUDED
- Number of Rows :
- 2
- Factory Lead Time :
- 10 Weeks
- IEC Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Packaging :
- Tray
- Overall Contact Length :
- 0.366 9.30mm
- UL Flammability Code :
- 94V-0
- Pbfree Code :
- yes
- Contact Length - Post :
- 0.126 3.20mm
- Stack Height (Mating) :
- 13.2mm
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions :
- 14
- MIL Conformance :
- No
- Datasheets
- 0559171430
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 14-Position Board to Cable/Wire 0.384 9.75mm Height
0559171430 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the MicroClasp 55917 Series of products.Additionally, there are other features, such as MICROCLASP, SHROUDED.It is possible for the device to be used for the application General Purpose, Industrial, Medical.
0559171430 Features
MicroClasp 55917 series
0559171430 Applications
There are a lot of Molex
0559171430 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
