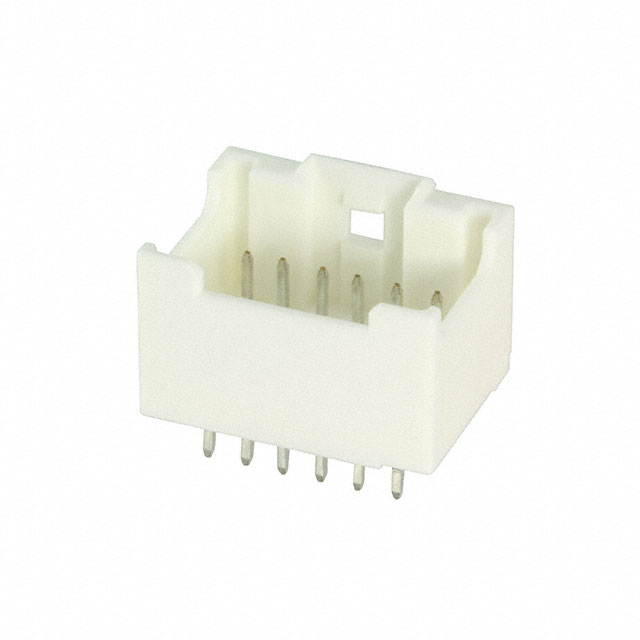

0559171230
Or copy the link below:
- Mfr.Part #
- 0559171230
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 2MM
- Stock
- 2,327
- In Stock ：
- 2,327
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 12
- Termination :
- Kinked Pin, Solder
- UL Flammability Code :
- 94V-0
- Contact Shape :
- Square
- Additional Feature :
- MICROCLASP, SHROUDED
- Factory Lead Time :
- 15 Weeks
- Mixed Contacts :
- No
- Series :
- MicroClasp 55917
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- MIL Conformance :
- No
- DIN Conformance :
- No
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Applications :
- General Purpose, Industrial, Medical
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.079 2.00mm
- Pbfree Code :
- yes
- Contact Material :
- Brass
- Number of Rows :
- 2
- Insulation Height :
- 0.384 9.75mm
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Insulation Color :
- Natural
- Fastening Type :
- Latch Holder
- Contact Finish - Mating :
- Tin
- Contact Length - Post :
- 0.126 3.20mm
- Style :
- Board to Cable/Wire
- Packaging :
- Tray
- IEC Conformance :
- No
- Contact Length - Mating :
- 0.150 3.81mm
- Overall Contact Length :
- 0.366 9.30mm
- Mounting Type :
- Through Hole
- Stack Height (Mating) :
- 13.2mm
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 0559171230
0559171230 Documents
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 12-Position Board to Cable/Wire 0.384 9.75mm Height
0559171230 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MicroClasp 55917 Series.Furthermore, there are other features such as MICROCLASP, SHROUDED, to name a few.There is the possibility of using the device for General Purpose, Industrial, Medical.
0559171230 Features
MicroClasp 55917 series
0559171230 Applications
There are a lot of Molex
0559171230 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
