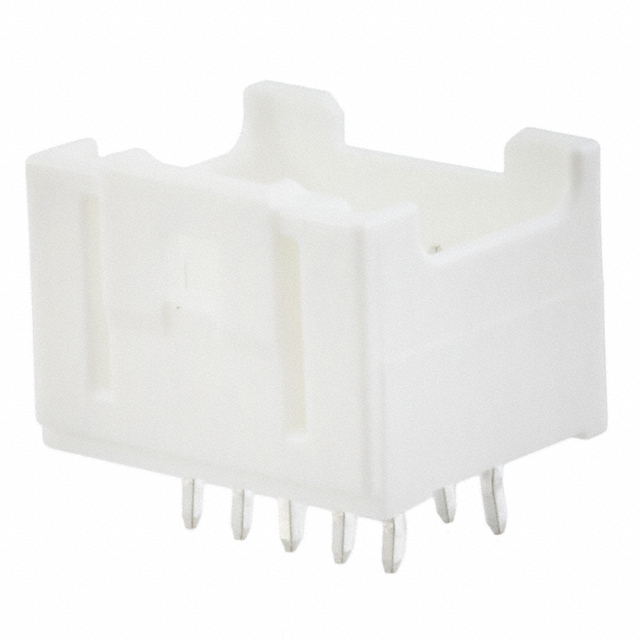

0559171010
Or copy the link below:
- Mfr.Part #
- 0559171010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2MM
- Stock
- 58,395
- In Stock ：
- 58,395
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Connector Type :
- Header
- Pitch - Mating :
- 0.079 2.00mm
- Number of Positions :
- 10
- Applications :
- General Purpose, Industrial, Medical
- Overall Contact Length :
- 0.366 9.30mm
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.126 3.20mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Material :
- Brass
- Stack Height (Mating) :
- 13.2mm
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Contact Finish - Mating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Natural
- Number of Rows :
- 2
- Contact Length - Mating :
- 0.150 3.81mm
- Feature :
- Board Guide
- Contact Shape :
- Square
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Termination :
- Kinked Pin, Solder
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 5 Weeks
- Fastening Type :
- Latch Holder
- Insulation Height :
- 0.384 9.75mm
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Series :
- MicroClasp 55917
- Datasheets
- 0559171010
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 10-Position Board to Cable/Wire 0.384 9.75mm Height
0559171010 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the MicroClasp 55917 Series.A possible application for the device is General Purpose, Industrial, Medical.In many ways, its Board Guide feature makes it more powerful.
0559171010 Features
MicroClasp 55917 series
0559171010 Applications
There are a lot of Molex
0559171010 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
