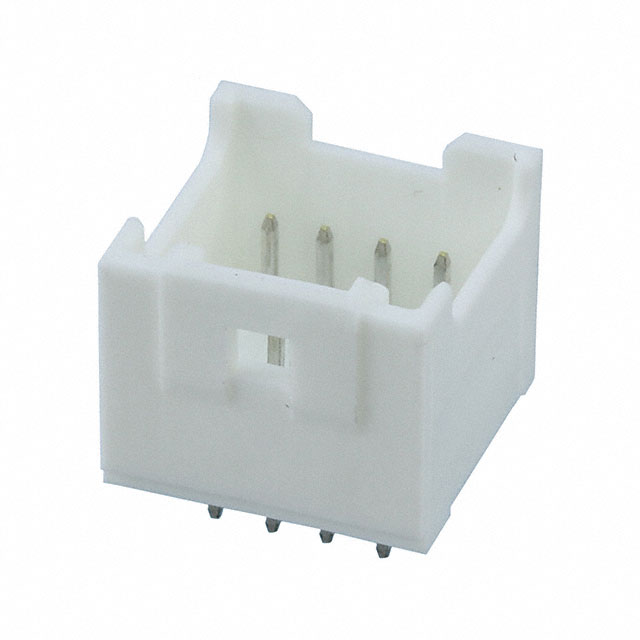

0559170830
Or copy the link below:
- Mfr.Part #
- 0559170830
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2MM
- Stock
- 6,163
- In Stock ：
- 6,163
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Latch Holder
- Stack Height (Mating) :
- 13.2mm
- Contact Shape :
- Square
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Mating :
- Tin
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Natural
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Packaging :
- Tray
- Applications :
- General Purpose, Industrial, Medical
- Termination :
- Kinked Pin, Solder
- Number of Positions :
- 8
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Series :
- MicroClasp 55917
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Mating :
- 0.150 3.81mm
- Insulation Height :
- 0.384 9.75mm
- Factory Lead Time :
- 5 Weeks
- Contact Finish - Post :
- Tin
- Connector Type :
- Header
- Overall Contact Length :
- 0.366 9.30mm
- Contact Length - Post :
- 0.126 3.20mm
- Datasheets
- 0559170830
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 8-Position Board to Cable/Wire 0.384 9.75mm Height
0559170830 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number MicroClasp 55917 belongs to the MicroClasp 55917 Series.In addition to General Purpose, Industrial, Medical, there are other possible applications for the device.
0559170830 Features
MicroClasp 55917 series
0559170830 Applications
There are a lot of Molex
0559170830 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
