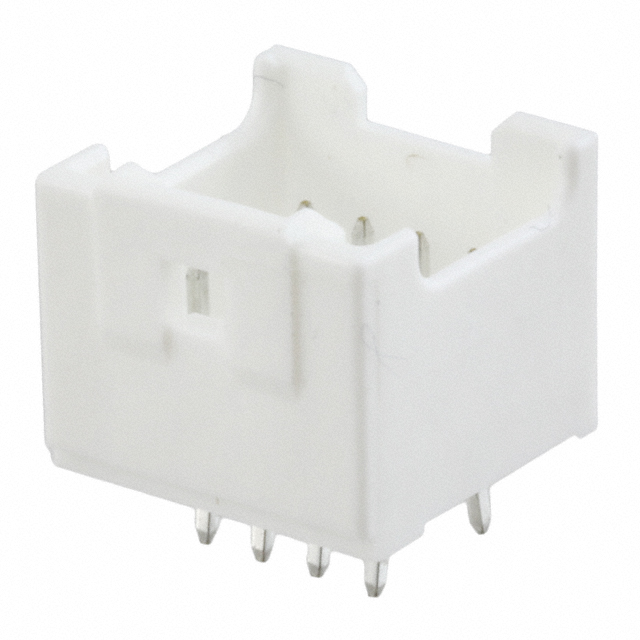

0559170810
Or copy the link below:
- Mfr.Part #
- 0559170810
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2MM
- Stock
- 47,725
- In Stock ：
- 47,725
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- IEC Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Board Guide
- Shrouding :
- Shrouded - 4 Wall
- Factory Lead Time :
- 6 Weeks
- Number of Rows :
- 2
- Overall Contact Length :
- 0.366 9.30mm
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- Mounting Type :
- Through Hole
- UL Flammability Code :
- 94V-0
- Insulation Color :
- Natural
- Number of Positions :
- 8
- Contact Type :
- Male Pin
- DIN Conformance :
- No
- Contact Length - Mating :
- 0.150 3.81mm
- Contact Material :
- Brass
- Mixed Contacts :
- No
- Pitch - Mating :
- 0.079 2.00mm
- Contact Shape :
- Square
- Termination :
- Kinked Pin, Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Row Spacing - Mating :
- 0.197 (5.00mm)
- JESD-609 Code :
- e3
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Applications :
- General Purpose, Industrial, Medical
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.126 3.20mm
- Stack Height (Mating) :
- 13.2mm
- Insulation Height :
- 0.384 9.75mm
- Connector Type :
- Header
- Packaging :
- Tray
- Fastening Type :
- Latch Holder
- Series :
- MicroClasp 55917
- Contact Finish - Mating :
- Tin
- Datasheets
- 0559170810
MicroClasp 55917 Series 2-Row Header Kinked Pin, Solder Brass Tray Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 8-Position Board to Cable/Wire 0.384 9.75mm Height
0559170810 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the MicroClasp 55917 Series.There are a variety of possible applications for this device, including General Purpose, Industrial, Medical.Several benefits come from the Board Guide feature.
0559170810 Features
MicroClasp 55917 series
0559170810 Applications
There are a lot of Molex
0559170810 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
