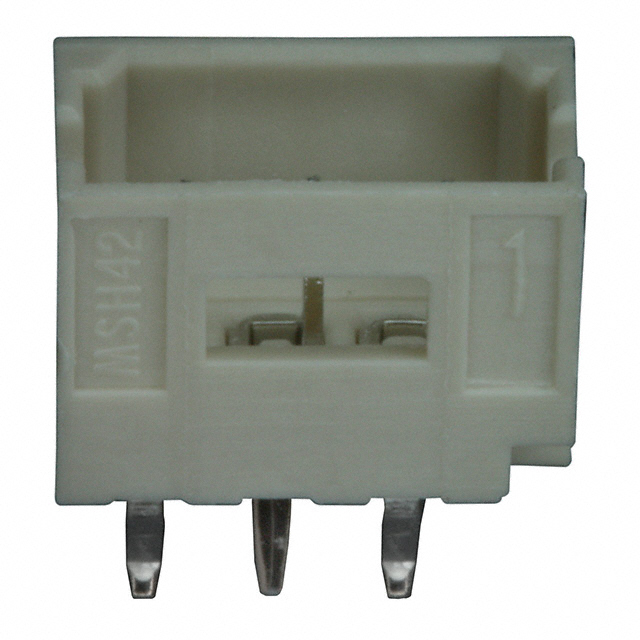

0530140310
Or copy the link below:
- Mfr.Part #
- 0530140310
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2MM
- Stock
- 8,252
- In Stock ：
- 8,252
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Material :
- Phosphor Bronze
- Style :
- Board to Cable/Wire
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- IEC Conformance :
- No
- Fastening Type :
- Detent Lock
- Mounting Type :
- Through Hole
- Contact Length - Post :
- 0.138 3.50mm
- Filter Feature :
- No
- Contact Shape :
- RECTANGULAR
- UL Flammability Code :
- 94V-0
- Termination :
- Kinked Pin, Solder
- Overall Contact Length :
- 0.327 8.30mm
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- MicroBlade 53014
- Packaging :
- Bulk
- Connector Type :
- Header
- Contact Type :
- Male Blade
- Pitch - Mating :
- 0.079 2.00mm
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- DIN Conformance :
- No
- Applications :
- General Purpose, Telecommunications
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Terminal Pitch :
- 2mm
- Contact Length - Mating :
- 0.122 3.10mm
- JESD-609 Code :
- e3
- Insulation Color :
- Natural
- Mixed Contacts :
- No
- Insulation Height :
- 0.230 5.85mm
- Contact Finish - Mating :
- Tin
- Number of Positions :
- 3
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 0530140310
MicroBlade 53014 Series 1-Row Header Kinked Pin, Solder Phosphor Bronze Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 3-Position Board to Cable/Wire 0.230 5.85mm Height
0530140310 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the MicroBlade 53014 Series of products.It is possible for the device to be used for the application General Purpose, Telecommunications.
0530140310 Features
MicroBlade 53014 series
0530140310 Applications
There are a lot of Molex
0530140310 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
