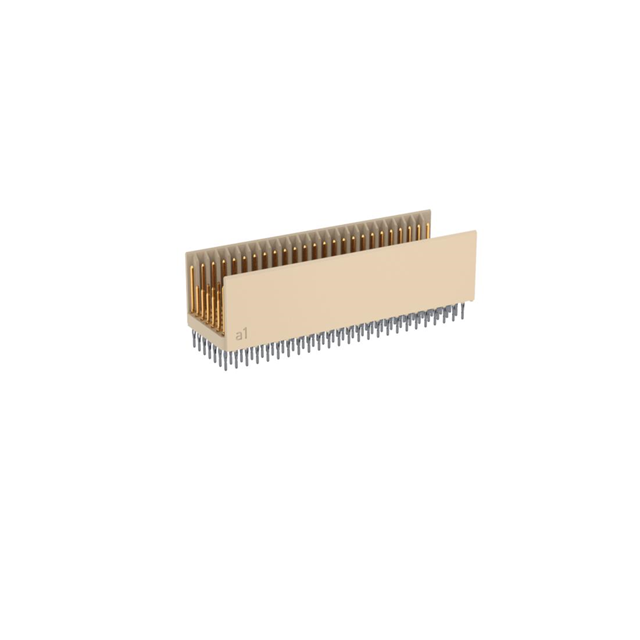

053008

Share

Or copy the link below:

Mfr.Part #
053008
Manufacturer
TE Connectivity
Package / Case
Datasheet
Download
Description
2MM HM B 175POS M 3.7MM
Stock
190
In Stock :
190

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity
Product Category :
Hard Metric, Standard
ECCN Code :
EAR99
Mounting Type :
BOARD
Contact Pattern :
RECTANGULAR
Contact Resistance :
20 mΩ
PCB Contact Row Spacing :
2.0066 mm
Reference Standard :
UL
Mounting Style :
Straight
Contact Material :
NOT SPECIFIED
Contact Style :
SQ PIN-SKT
Connector Type :
BOARD CONNECTOR
Number Of PCB Rows :
5
Insertion Force-Max :
.7506 N
Mounting Option 1 :
LOCKING
Additional Feature :
STANDARD: IEC 61076-4-101, 50 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS
Termination Type :
Press Fit
Polarization Key :
POLARIZED HOUSING
Body Breadth :
0.606 inch
Body Depth :
0.53 inch
UL Flammability Code :
94V-0
HTS Code :
8536.69.40.40
Mating Contact Row Spacing :
0.079 inch
DIN Conformance :
No
Durability :
250 Cycles
Reliability :
COMMERCIAL
Option :
GENERAL PURPOSE
PCB Contact Pattern :
RECTANGULAR
Reach Compliance Code :
Compliant
MIL Conformance :
No
Withdrawl Force-Min :
.7506 N
Terminal Pitch :
2 mm
Mixed Contacts :
No
Contact Gender :
Male
Total Number of Contacts :
175
Filter Feature :
No
Pbfree Code :
yes
IEC Conformance :
yes
Mating Information :
No
Body/Shell Style :
Receptacle
Mating Contact Pitch :
0.079 inch
Insulation Resistance :
10000000000 Ω
Datasheets
053008
Introducing Hard Metric, Standard TE Connectivity 053008 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:BOARD, 053008 pinout, 053008 datasheet PDF, 053008 amp .Beyond Hard Metric, Standard TE Connectivity 053008 ,we also offer 5106774-1, HM2P07PD5110N9LF, HM2P09PD5110N9LF, Our vast inventory has you covered. Contact us now for immediate solutions.
