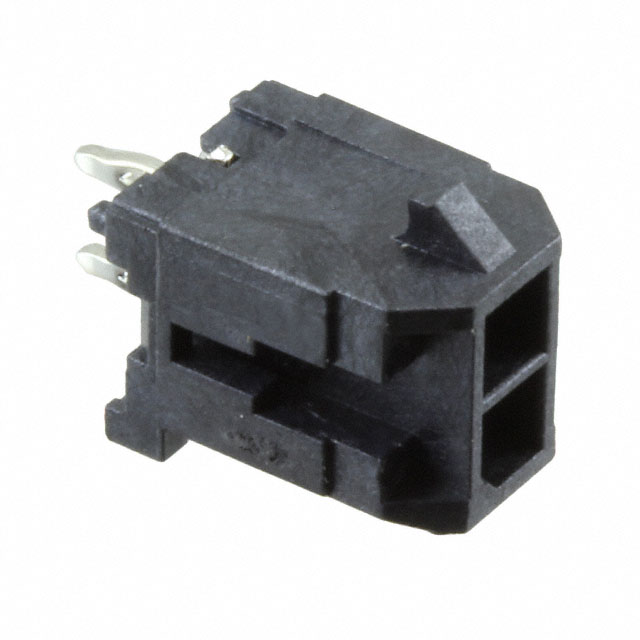

0449140201

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Series :

Micro-Fit 3.0 CPI 44914

UL Flammability Code :

94V-0

Number of Contacts :

2

Row Spacing - Mating :

0.118 (3.00mm)

Pbfree Code :

yes

REACH SVHC :

No SVHC

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

RoHS Status :

ROHS3 Compliant

Reach Compliance Code :

Unknown

JESD-609 Code :

e3

Applications :

General Purpose, Medical, Military, Telecommunications

Voltage - Rated DC :

250V

Fastening Type :

Locking Ramp

Max Operating Temperature :

105°C

Number of Rows :

2

Housing Material :

Thermoplastic

Contact Type :

Male Pin

Lead Pitch :

3mm

Glow Wire Compliant :

Compliant

Number of Positions Loaded :

All

Style :

Board to Board or Cable

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Tin

Halogen Free :

Low Halogen

DIN Conformance :

No

Shrouding :

Shrouded - 4 Wall

Connector Type :

Header

MIL Conformance :

No

Termination :

Press-Fit, Solder

Flammability Rating :

UL94 V-0

Contact Length - Post :

0.125 3.18mm

Factory Lead Time :

8 Weeks

Mixed Contacts :

No

Packaging :

Tray

Pitch :

3mm

Contact Shape :

Square

Contact Finish Thickness - Mating :

200.0μin 5.08μm

Contact Material :

Modified Tin/Brass Alloy

Mounting Type :

Through Hole

Voltage - Rated :

250V

Filter Feature :

No

IEC Conformance :

No

Min Operating Temperature :

-40°C

Insulation Height :

0.390 9.91mm

Current Rating :

5A

Orientation :

Vertical, Right Angle

Mount :

Through Hole

Feature :

Board Guide

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Black
