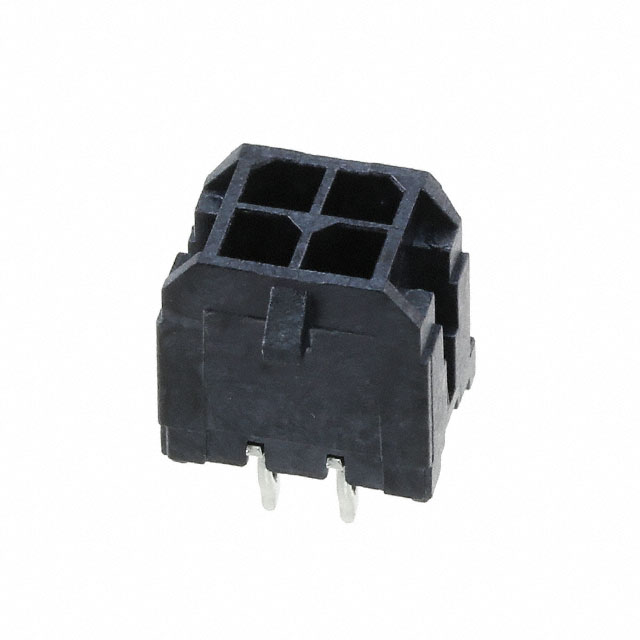

0449140401

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Feature :

Board Guide

Connector Type :

Header

Series :

Micro-Fit 3.0 CPI 44914

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Row Spacing - Mating :

0.118 (3.00mm)

Number of Positions Loaded :

All

Contact Finish Thickness - Mating :

200.0μin 5.08μm

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Contact Material :

Modified Tin/Brass Alloy

Factory Lead Time :

8 Weeks

Termination :

Press-Fit, Solder

Contact Length - Post :

0.125 3.18mm

DIN Conformance :

No

Applications :

General Purpose, Medical, Military, Telecommunications

Terminal Pitch :

3mm

ECCN Code :

EAR99

Mixed Contacts :

No

Insulation Color :

Black

Pitch - Mating :

0.118 3.00mm

JESD-609 Code :

e3

Number of Positions :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Style :

Board to Board or Cable

MIL Conformance :

No

Filter Feature :

No

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

Insulation Height :

0.390 9.91mm

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Fastening Type :

Locking Ramp

Packaging :

Tray

Contact Shape :

Square

Contact Finish - Mating :

Tin
