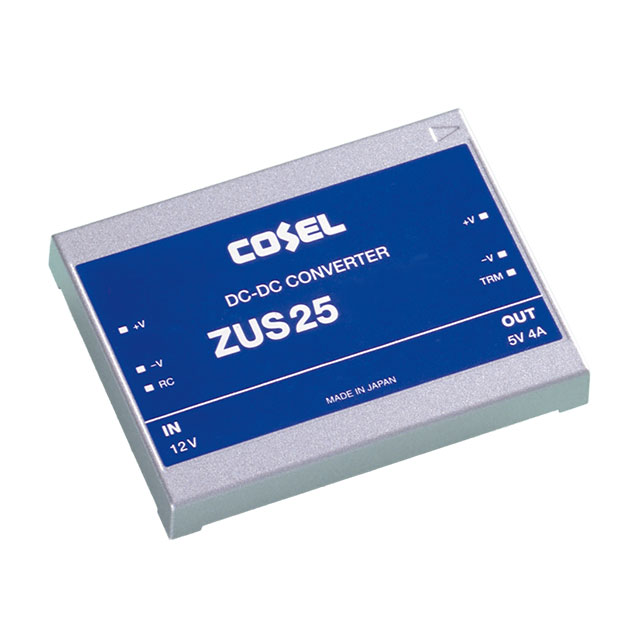

ZUS254805

Manufacturer :

Cosel

Product Category :

Lead Free :

Lead Free

Series :

ZUS (25W)

Depth :

8.5mm

Published :

2005

Number of Outputs :

1

Size / Dimension :

2.56Lx1.97W x 0.33 H 65.0mmx50.0mmx8.5mm

Voltage - Input (Min) :

36V

Type :

Isolated Module

Trim/Adjustable Output :

yes

Operating Temperature :

-20°C~71°C With Derating

Factory Lead Time :

6 Weeks

Total Power Output-Max :

20W

Output Current :

4A

Number of Functions :

1

Voltage - Input (Max) :

75V

Width :

50mm

Mounting Type :

Through Hole

Weight :

65.000013g

ECCN Code :

EAR99

Height :

8.382mm

JESD-30 Code :

R-XDMA-P6

Approval Agency :

CE, TUV, cULus

Terminal Form :

PIN/PEG

Pbfree Code :

yes

Length :

65mm

Applications :

ITE (Commercial)

RoHS Status :

RoHS Compliant

Voltage - Isolation :

500V

Terminal Position :

Dual

Nominal Input Voltage :

48V

Reach Compliance Code :

Unknown

Package / Case :

6-DIP Module

Mount :

PCB, Through Hole

Moisture Sensitivity Level (MSL) :

Not Applicable

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Feature :

Remote On/Off, OCP, OVP

Output Power :

25W

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Efficiency :

82%

Current - Output 1 :

4A

Number of Terminations :

6

Output Voltage :

5V

Input Voltage-Nom :

48V
