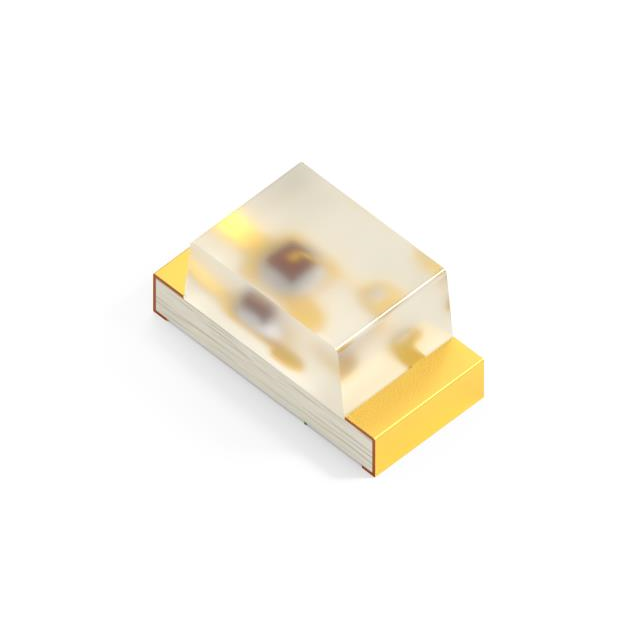

XZFBB53W-1

Manufacturer :

SunLED

Product Category :

Voltage - Forward (Vf) (Typ) :

3.3V

Mounting Type :

Surface Mount

Factory Lead Time :

6 Weeks

Packing Method :

TR, 7 INCH

Lens Size :

1.20mmx0.80mm

Luminous Intensity :

178.0 mcd

Size / Dimension :

1.60mm Lx0.80mm W

Optoelectronic Device Type :

SINGLE COLOR LED

Packaging :

Tape and Reel (TR)

Wavelength - Peak :

465nm

Terminal Pitch :

1.65mm

Published :

2016

Lens Transparency :

Clear

Pbfree Code :

yes

Operating Temperature (Max) :

85°C

Height (Max) :

0.85mm

Operating Temperature (Min) :

-40°C

Forward Current-Max :

0.03A

Overall Height :

0.75mm

Millicandela Rating :

178mcd

Shape :

RECTANGULAR

Color :

Blue

Current - Test :

20mA

Number of Functions :

1

Lens Style :

Rectangle with Flat Top

Surface Mount :

yes

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Terminations :

2

Package / Case :

0603 (1608 Metric)

Wavelength - Dominant :

470nm

Viewing Angle :

130°

Lens Color :

Colorless

Configuration :

Standard

RoHS Status :

ROHS3 Compliant
