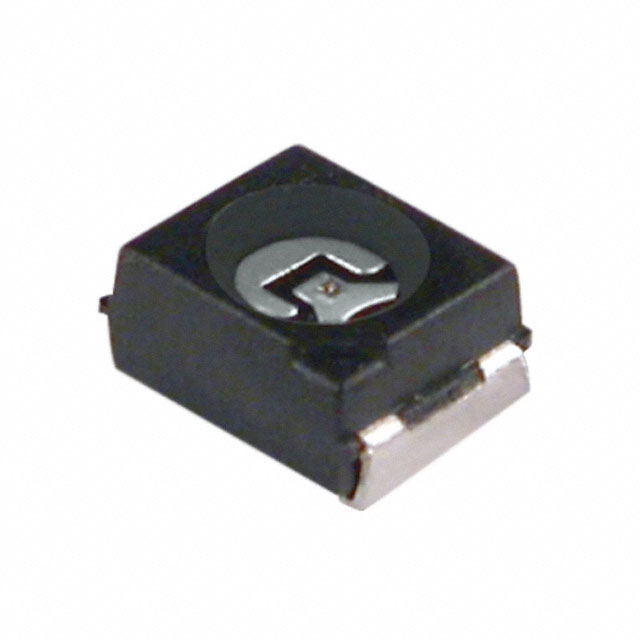

XZFBB45SB

Manufacturer :

SunLED

Product Category :

Terminal Pitch :

3.1mm

Number of Pins :

2

Operating Temperature (Min) :

-40°C

Wavelength - Peak :

465nm

Number of Terminations :

2

Number of Functions :

1

Color :

Blue

Packing Method :

Tape and Reel

Package / Case :

2-PLCC

Operating Temperature (Max) :

85°C

Lens Color :

Colorless

Voltage - Forward (Vf) (Typ) :

3.3V

Wavelength - Dominant :

470nm

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Published :

2010

Lens Style :

Round with Flat Top

Series :

NINJA

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Lens Size :

2.40mm Dia

Mount :

Surface Mount

Factory Lead Time :

6 Weeks

Pbfree Code :

yes

Configuration :

Standard

Forward Current-Max :

0.03A

Lens Transparency :

Clear

Current - Test :

20mA

Viewing Angle :

120°

Size / Dimension :

3.20mm Lx2.80mm W

Height :

2.1mm

Packaging :

Cut Tape (CT)

ECCN Code :

EAR99

Optoelectronic Device Type :

SINGLE COLOR LED

Luminous Intensity :

168 mcd
