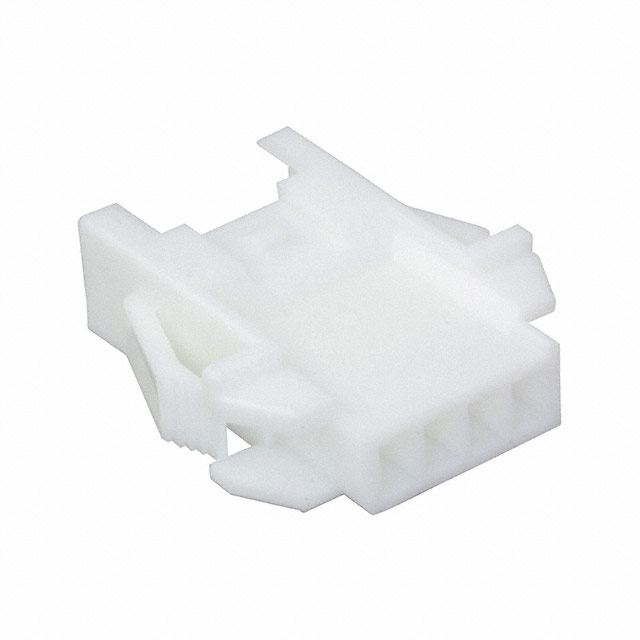

XARR-04V

Manufacturer :

JST

Product Category :

Rectangular Connector Housings

Note :

Contacts Not Included

Fastening Type :

Latch Lock

Factory Lead Time :

18 Weeks

Weight :

13.607771g

Mixed Contacts :

No

Mounting Type :

Panel Mount, Snap-In

Filter Feature :

No

Contact Material :

NOT SPECIFIED

Max Voltage Rating (AC) :

250V

Housing Material :

Nylon

Min Operating Temperature :

-25°C

Connector Type :

Receptacle

Number of Rows :

1

Contact Termination :

Crimp

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

Straight

Contact Gender :

FEMALE

Total Number of Contacts :

4

MIL Conformance :

No

REACH SVHC :

No SVHC

Published :

2004

ECCN Code :

EAR99

Length :

18.9mm

Housing Color :

White

Series :

XA

Pbfree Code :

yes

Color :

Natural

Max Current Rating :

3A

Mount :

Panel

Packaging :

Bulk

Current Rating :

3A

Wire Gauge (Min) :

20 AWG

Voltage - Rated :

250V

Wire Gauge (Max) :

28 AWG

Option :

WITH CABLE ASSEMBLY

RoHS Status :

RoHS Compliant

Depth :

21.6mm

IEC Conformance :

No

Pitch :

0.098 2.50mm

Contact Type :

Male Pin

Number of Positions :

4

Width :

23.876mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

85°C

DIN Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Height :

23.876mm
