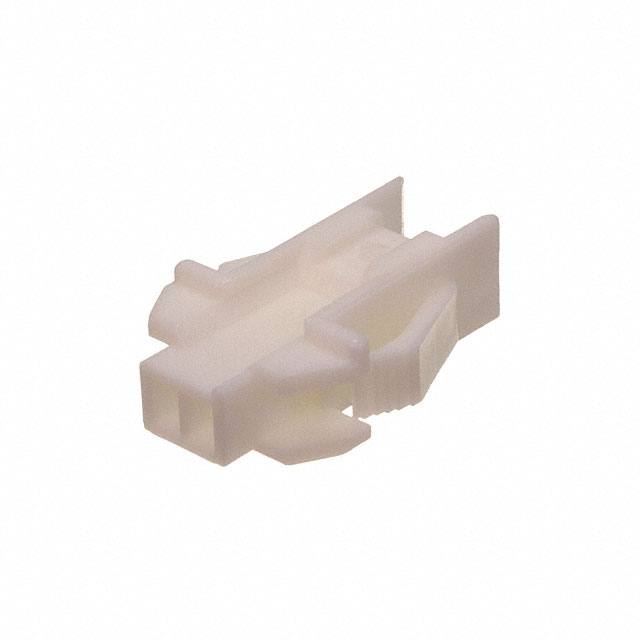

XARR-02V

Manufacturer :

JST

Product Category :

Rectangular Connector Housings

Published :

2004

Fastening Type :

Latch Lock

Mixed Contacts :

No

REACH SVHC :

No SVHC

Length :

13.9mm

Packaging :

Bulk

Contact Termination :

Crimp

RoHS Status :

RoHS Compliant

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Receptacle

Current Rating :

3A

Option :

WITH CABLE ASSEMBLY

Housing Color :

White

Depth :

21.6mm

Total Number of Contacts :

2

Number of Positions :

2

Factory Lead Time :

18 Weeks

Min Operating Temperature :

-25°C

Height :

23.876mm

Orientation :

Straight

Weight :

9.071847g

Max Current Rating :

3A

Voltage - Rated :

250V

Housing Material :

Nylon

Width :

23.876mm

IEC Conformance :

No

HTS Code :

8536.69.40.40

Mount :

Panel

Mounting Type :

Panel Mount, Snap-In

Wire Gauge (Max) :

28 AWG

MIL Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

DIN Conformance :

No

Contact Type :

Male Pin

Max Voltage Rating (AC) :

250V

Note :

Contacts Not Included

Series :

XA

Pbfree Code :

yes

Contact Material :

NOT SPECIFIED

Color :

Natural

Pitch :

0.098 2.50mm

Contact Gender :

FEMALE

Max Operating Temperature :

85°C

Wire Gauge (Min) :

20 AWG

UL Flammability Code :

94V-0

Contact Finish - Mating :

NOT SPECIFIED

ECCN Code :

EAR99

Filter Feature :

No
