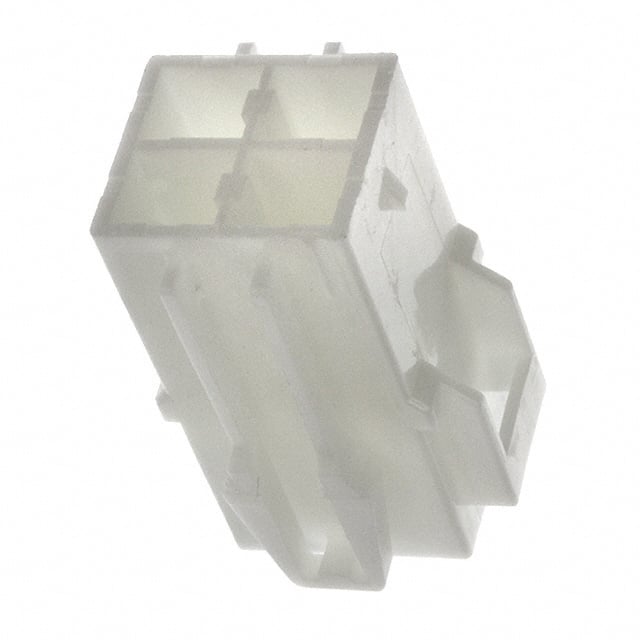

VLR-04V

Share

Or copy the link below:

Mfr.Part #
VLR-04V
Manufacturer
JST
Package / Case
Datasheet
Download
Description
CONN RCPT HSG 4POS 6.20MM
Stock
70,290
In Stock :
70,290

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
JST
Product Category :
Rectangular Connector Housings
Height :
18.2mm
Mixed Contacts :
No
Packaging :
Bulk
Wire Gauge (Max) :
22 AWG
Filter Feature :
No
REACH SVHC :
No SVHC
Contact Type :
Male Pin
Contact Material :
Bronze, Tin
Fastening Type :
Latch Holder
Max Current Rating :
20A
Voltage - Rated DC :
600V
Published :
2002
Option :
GENERAL PURPOSE
DIN Conformance :
No
Contact Resistance :
10MOhm
Housing Material :
Nylon
IEC Conformance :
No
Number of Rows :
2
Min Operating Temperature :
-25°C
Contact Termination :
Crimp
Working Voltage :
600V
Length :
20.2mm
Contact Finish - Mating :
NOT SPECIFIED
Depth :
29.5mm
Note :
Contacts Not Included
RoHS Status :
RoHS Compliant
MIL Conformance :
No
Color :
White
Series :
VL
ECCN Code :
EAR99
Mount :
Cable, Free Hanging, Panel
Contact Plating :
Tin
Width :
29.5mm
Orientation :
Straight
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Total Number of Contacts :
4
Factory Lead Time :
18 Weeks
Pbfree Code :
yes
Wire Gauge (Min) :
12 AWG
Mounting Type :
Free Hanging (In-Line)
Insulation Resistance :
1GOhm
Current Rating :
18A
Max Voltage Rating (AC) :
600V
Contact Gender :
FEMALE
Max Operating Temperature :
90°C
Flammability Rating :
UL94 V-0
Shell Material :
POLYAMIDE66
Pitch :
0.244 6.20mm
Reach Compliance Code :
Unknown
Connector Type :
Receptacle
Empty Shell :
No
Panel Thickness :
1.6mm
Number of Positions :
4
Wire/Cable Gauge :
12 AWG
Lead Pitch :
6.2mm
Row Spacing :
8.2804 mm
Introducing Rectangular Connector Housings JST VLR-04V from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), VLR-04V pinout, VLR-04V datasheet PDF, VLR-04V amp .Beyond Rectangular Connector Housings JST VLR-04V ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

JST VLR-04V


2 Rows Receptacle Bulk White 4 Positions Free Hanging (In-Line) Male Pin Crimp VL Nylon

VLR-04V Overview


A Receptacle package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the VL Series of products.Cable, Free Hanging, Panel mounts the part.

VLR-04V Features


VL series


VLR-04V Applications


There are a lot of JST Sales America Inc.
VLR-04V Rectangular Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
