VLR-03V

Share

Or copy the link below:

Mfr.Part #
VLR-03V
Manufacturer
JST
Package / Case
Datasheet
Download
Description
CONN RCPT HSG 3POS 6.20MM
Stock
840,960
In Stock :
840,960

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
JST
Product Category :
Rectangular Connector Housings
RoHS Status :
RoHS Compliant
Connector Type :
Receptacle
Filter Feature :
No
Series :
VL
Current Rating :
19A
Max Operating Temperature :
90°C
UL Flammability Code :
94V-0
Published :
2002
Width :
29.5mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Material :
Bronze, Tin
Contact Gender :
FEMALE
Max Current Rating :
20A
Height :
11.2mm
Reach Compliance Code :
Unknown
ECCN Code :
EAR99
Min Operating Temperature :
-25°C
Contact Resistance :
10MOhm
Working Voltage :
600V
Insulation Resistance :
1GOhm
Packaging :
Bulk
Contact Finish - Mating :
NOT SPECIFIED
Pitch :
0.244 6.20mm
Wire Gauge (Min) :
12 AWG
Wire Gauge (Max) :
22 AWG
Panel Thickness :
1.6mm
Mounting Type :
Free Hanging (In-Line)
Note :
Contacts Not Included
Empty Shell :
No
Wire/Cable Gauge :
12 AWG
Pbfree Code :
yes
Contact Type :
Male Pin
Contact Termination :
Crimp
Shell Material :
POLYAMIDE66
Option :
GENERAL PURPOSE
Max Voltage Rating (AC) :
600V
Lead Pitch :
6.2mm
Total Number of Contacts :
3
DIN Conformance :
No
IEC Conformance :
No
Orientation :
Straight
Flammability Rating :
UL94 V-0
Fastening Type :
Latch Holder
Contact Plating :
Tin
MIL Conformance :
No
Length :
26.4mm
Voltage - Rated DC :
600V
Factory Lead Time :
16 Weeks
Housing Material :
Nylon
REACH SVHC :
No SVHC
Lead Free :
Lead Free
Number of Positions :
3
Number of Rows :
1
Depth :
29.5mm
Mount :
Cable, Free Hanging, Panel
Mixed Contacts :
No
Color :
White
Introducing Rectangular Connector Housings JST VLR-03V from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), VLR-03V pinout, VLR-03V datasheet PDF, VLR-03V amp .Beyond Rectangular Connector Housings JST VLR-03V ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

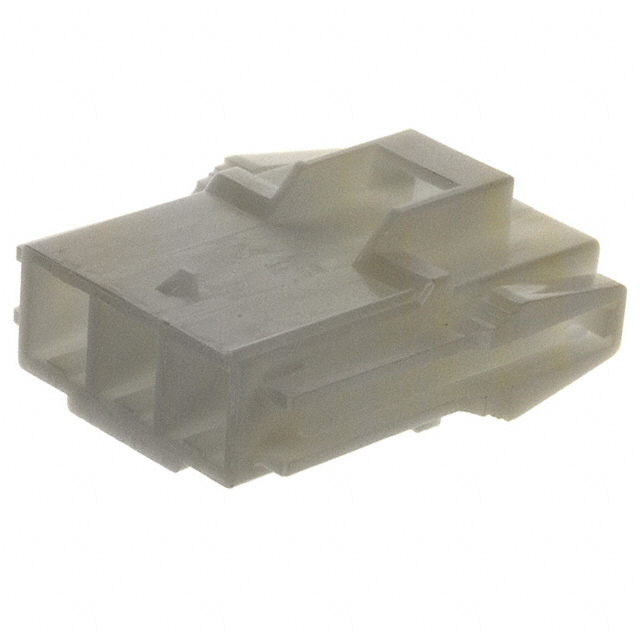

JST VLR-03V


1 Rows Receptacle Bulk White 3 Positions Free Hanging (In-Line) Male Pin Crimp VL Nylon

VLR-03V Overview


Packaging is in the form of Receptacle.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the VL Series.There is a mounting hole at Cable, Free Hanging, Panel.

VLR-03V Features


VL series


VLR-03V Applications


There are a lot of JST Sales America Inc.
VLR-03V Rectangular Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
