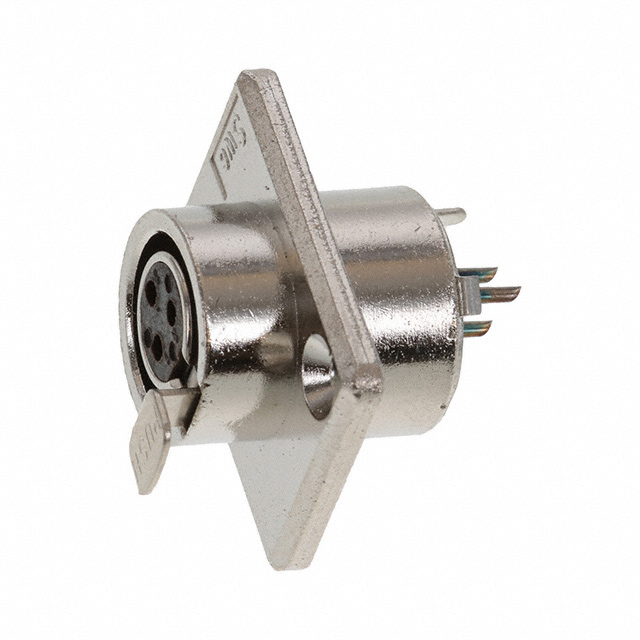

TY3FPC

Manufacturer :

Switchcraft / Conxall

Product Category :

Circular Connector Assemblies

Pbfree Code :

yes

Feature :

Ground

Current Rating :

5A

Orientation :

Keyed

Published :

2002

Series :

TINI Q-G® TY

Number of Poles :

3

Shell Size - Insert :

Mini XLR

Termination :

Solder

Contact Material :

BERYLLIUM COPPER

Coupling Type :

Snap

Body Breadth :

0.74 inch

Max Current Rating :

5A

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

DIN Conformance :

No

Operating Temperature :

-55°C~85°C

Contact Style :

RND PIN-SKT

Total Number of Contacts :

3

Mount :

Flanges, Panel, Through Hole

Number of Ports :

1

Lead Free :

Lead Free

Contact Finish - Mating :

Silver

Mounting Type :

Panel Mount, Through Hole

Shell Finish :

Nickel

Shell Material :

Brass

Fastening Type :

Latch Lock

Depth :

23.69mm

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Length :

18.79mm

Applications :

Audio

Body/Shell Style :

Receptacle

Backshell Type :

Solid

Additional Feature :

RoHS Compliant

ECCN Code :

EAR99

Empty Shell :

No

Filter Feature :

No

Mounting Feature :

Flange

IEC Conformance :

No

Height :

24.38mm

Number of Positions :

3

Max Voltage Rating (AC) :

125V

Factory Lead Time :

12 Weeks

Voltage - Rated :

125VAC

Insert Material :

Polyphenylene Sulfide (PPS)

JESD-609 Code :

e4

Packaging :

Bulk

Gender :

FEMALE

Number of Conductors :

ONE

Insulation Material :

Plastic

Connector Type :

Plug, Female Sockets

Mixed Contacts :

No
